Product Details
Triple Axis Accelerometer 1.8-3.6VDC

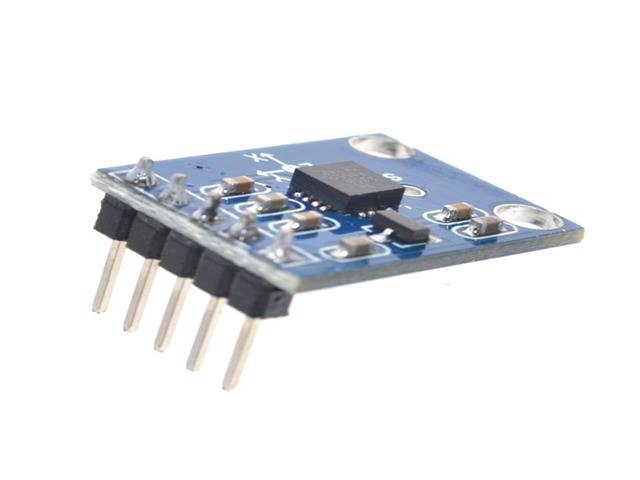

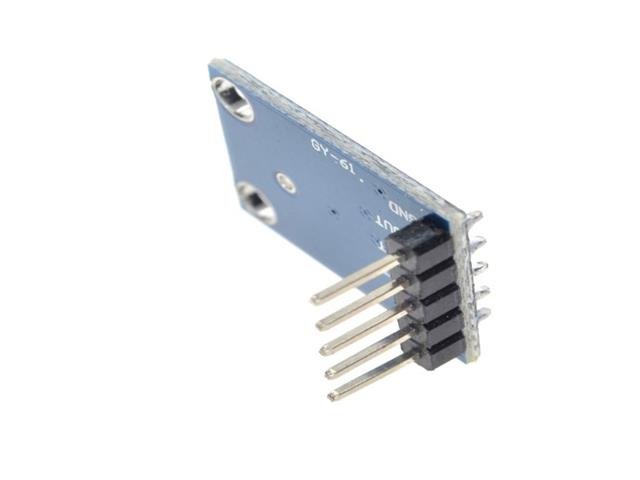

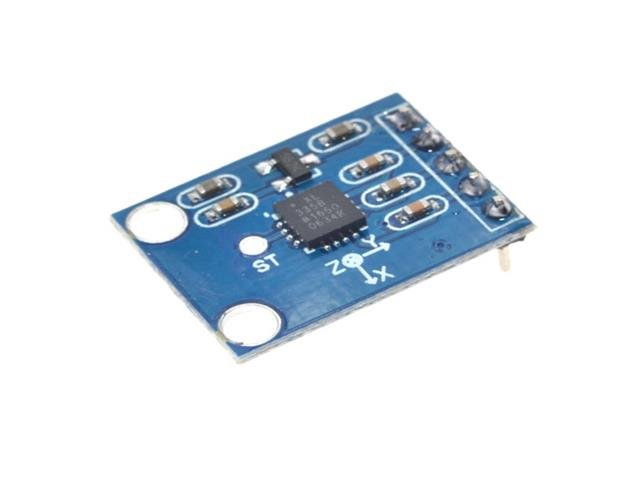

Triple Axis Accelerometer
Overview
The 3 axis ADXL335 from Analog Devices is the latest in a long, proven line of analog sensors - the holy grail of accelerometers. The ADXL335 is a triple axis MEMS accelerometer with extremely low noise and power consumption - only 320uA! The sensor has a full sensing range of +/-3g. There is no on-board regulation, provided power should be between 1.8 and 3.6VDC. The Board comes fully assembled and tested with external components installed.
Specifications
- Sensor Chip : ADXL335
- Power Supply : 3-5 V
- Integrated X, Y, and Z axis accelerometer on a single chip
- X and Y axis has a 0.5Hz to 1600Hz bandwidth
- Z axis has a 0.5Hz to 550Hz bandwidth
- Hermetically sealed for temp and humidity resistance
- 10,000 g shock tolerant
- Dimensions : 21 x 16 mm
Additional Information
| Device | Accelerometer |
| Type | Triple Axis |
