Product Details

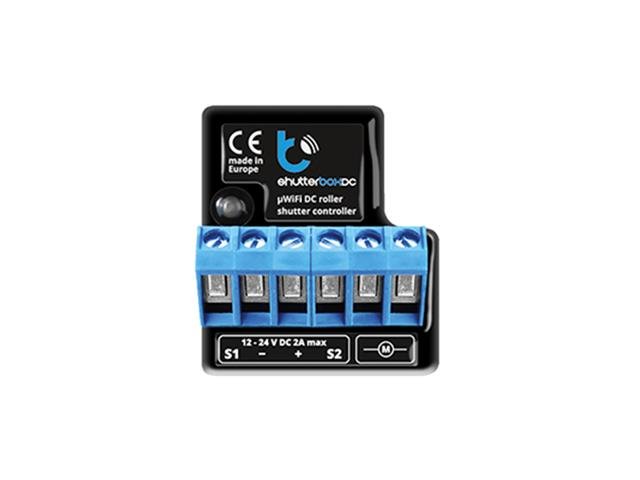

Shutterbox DC with a Smartphone or Tablet allows you to control Roller Shutters, Awnings, Shutters or Windows Equipped with Low Voltage (12-24V) DC Motors
Shutterbox DC with a Smartphone or Tablet
Specifications
- Supply voltage : 12-24V DC
- Energy consumption : less than 1W
- Outputs number : 2
- Outputs type : H-bridge
- Maximum current (total) : 2A
- Max load : 48W
- Inputs number : 2
- Inputs type : logical, to GND
- Inputs voltage : 12-24 DC
- Housing : made of polyurethane composition not containing halogens, self-extinguishing for thermal class B (130 °C)
- Protection Rating : IP20
- Dimensions : 38 x 33 x 20 mm
- Mounting : in the flush-mounted box (deepen or double) in the receiver case.
- Transmission : bi-directional, encrypted
- Transmission frequency : 2.4GHz
- Communication standard : μWiFi, compatible with WiFi
- Communication mode : direct connection (as access point), Wi-Fi connection via a standard router, connection with access from any location in the world (requires access to the Internet)
- Control with : Apple iPhone, Apple iPad, iPad Mini, Android, computers and mobile devices operating a fully HTML5
- Encryption : WPA2-PSK and authenticated encryption with associated data (AEAD)
Downloads
Additional Information
| Device | Shutterbox DC |
| Type | Smartphone | Tablet |
