SI-N 25V 0.3A 1.5W 1.1GHz
Specifications

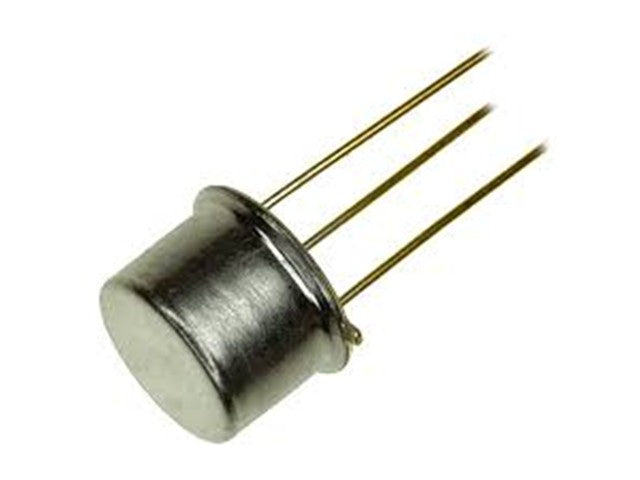

| Case |
TO39 |
| Vbr CBO |
25 |
| Mat. |
Silicon Logic |
| Oper. Gain Typ (S21) |
16 |
| Oper. Pwr Out Typ. |
150m |
| f(osc) Max. (Hz) |
1.1G |
| Polarity |
NPN |
| PD Max. (W) |
1.5 |
| Coll. (or drain) Current Max. |
150m |
| Oper. Temp (°C) Max. |
175 |
| Pinout Equivalence Number |
3-12 |
| Surface Mounted Yes/No |
NO |
| Maximum Collector Power Dissipation (Pc) |
1.5 W |
| Maximum Collector-Base Voltage |Vcb| |
40 V |
| Maximum Collector-Emitter Voltage |Vce| |
25 V |
| Maximum Emitter-Base Voltage |Veb| |
2 V |
| Maximum Collector Current |Ic max| |
0.3 A |
| Max. Operating Junction Temperature (Tj) |
200 °C |
| Transition Frequency (ft): |
550 MHz |
| Forward Current Transfer Ratio (hFE), MIN |
25 |
