| Case |

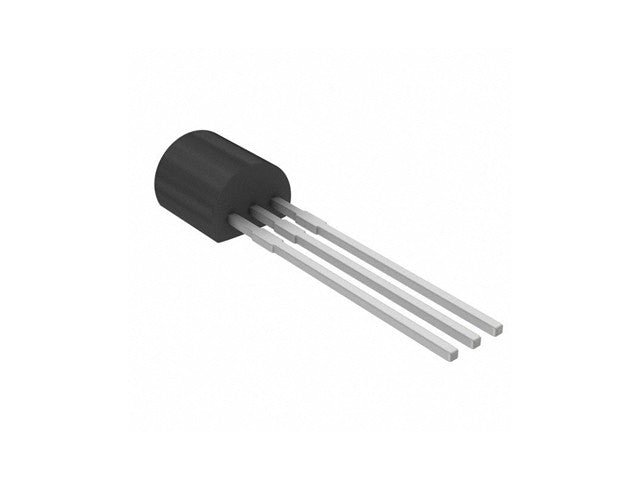

TO92 |
| Vbr CBO |
40 |
| Vbr CEO |
40 |
| Max. PD (W) |
250m |
| C(ob) (F) |
320f |
| hfe |
65 |
| Ic Max. (A) |
25m |
| Icbo Max. @Vcb Max. (A) |
50n |
| Polarity |
PNP |
| Trans. Freq (Hz) Min. |
325M |
| @VCE (test) (V) |
10 |
| Oper. Temp (°C) Max. |
150 |
| @Ic (A) |
1.0m |
| Pinout Equivalence Number |
3-14 |
| Surface Mounted Yes/No |
NO |
| Maximum Collector Power Dissipation (Pc) |
0.15 W |
| Maximum Collector-Base Voltage |Vcb| |
40 V |
| Maximum Collector-Emitter Voltage |Vce| |
40 V |
| Maximum Emitter-Base Voltage |Veb| |
4 V |
| Maximum Collector Current |Ic max| |
0.025 A |
| Max. Operating Junction Temperature (Tj) |
125 °C |
| Collector Capacitance (Cc) |
0.7 pF |
| Transition Frequency (ft): |
325 MHz |
| Forward Current Transfer Ratio (hFE), MIN |
60 |
