Product Details

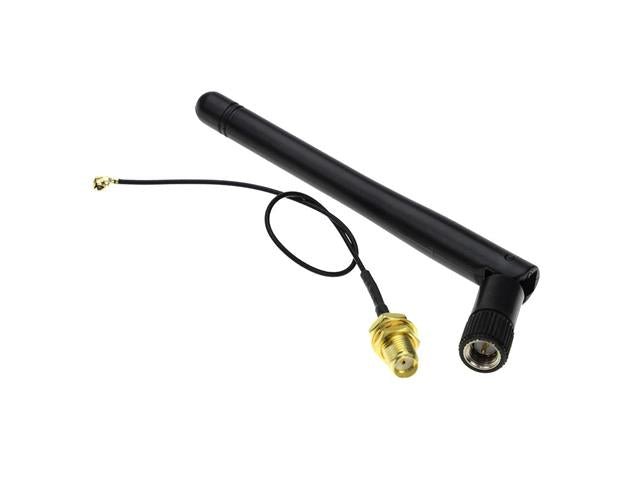

2.4G 3dBi Small Folding Antenna Inner Pin. Total Height 11cm. Includes 15cm IPEX to SMA Cable
2.4G 3dBi Small Folding Antenna Inner Pin
Features
- Parameters: 3dbi gain antenna and antenna patch cord
- Note: IPEX to SMA adapter cable, line length 15CM
- Name: 2.4G omnidirectional antenna
- Frequency band: 2400-2500
- Detailed Index: Electrical Performance Electrical Specifications
- Band: Frequency Range (MHz) 2400-2500
- Gain: Gain(dBi) >2.5
- Standing wave ratio: V.S.W.R. <1.5
- Polarization: Polarization Vertical
- Out of roundness: Non-Circularity (dB) ±0.5
- Input impedance: Impedance (Ω) 50
- Lightning Protection: Lightning Protection Direct Ground
- Maximum power: Maximum Input Power(W) 50
- Mechanical Properties: Mechanical Specifications
- Connector Style: Connector Type SMA
- Radiation Material: Radiating Element Material Copper
- Radome material: Radome Material EVA
- Radome color: Radome Color Gray
- Antenna size: Dimension (mm) 110 (Unbend) 92 (Bend
Additional Information
| Device | Inner Pin |
| Type | 2.4G | 3dBi | Small Folding | Antenna |
