Product Details
This Multi-functional Sensor Meter Can Measure A Current Or Voltage Signal Input In The Range Of 0-75MV/4-20MA/0-10V. It Can Be Used With A Transmitter, Pressure Sensor, Liquid Level Sensor, Weighing Sensor And So On. Power Supply: 220V AC

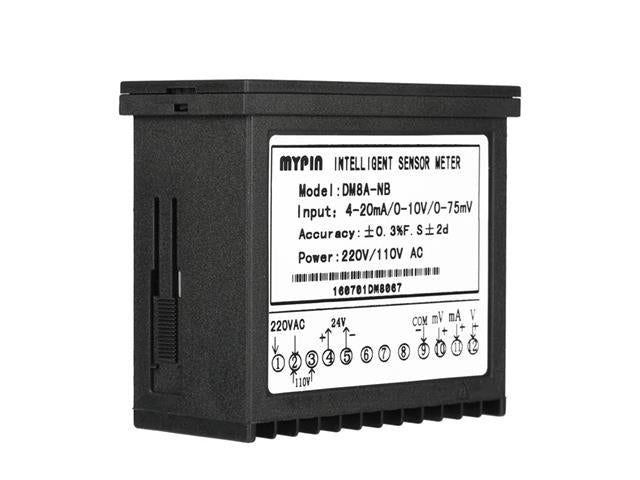

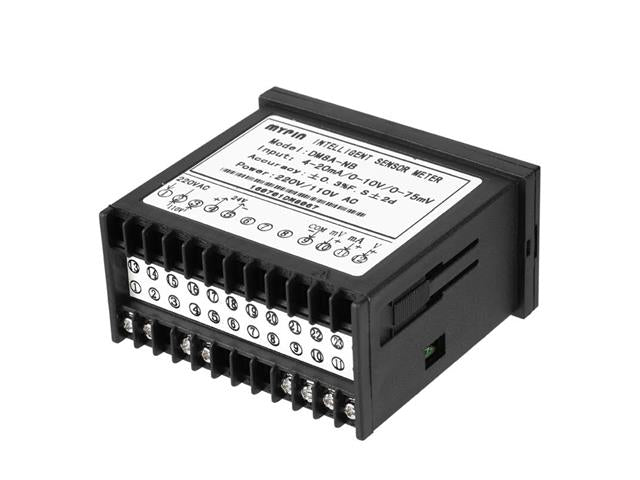

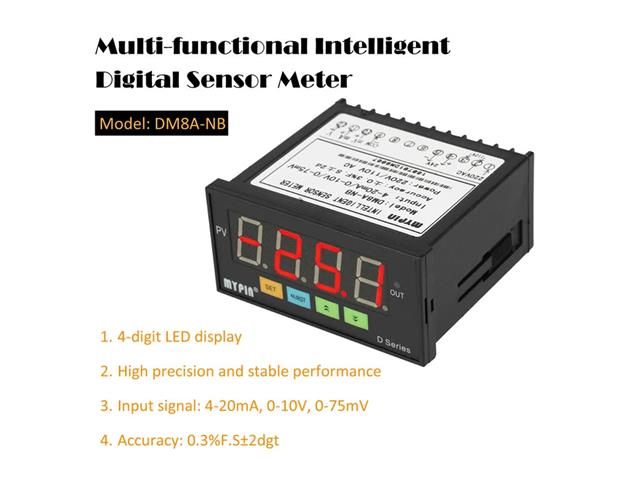

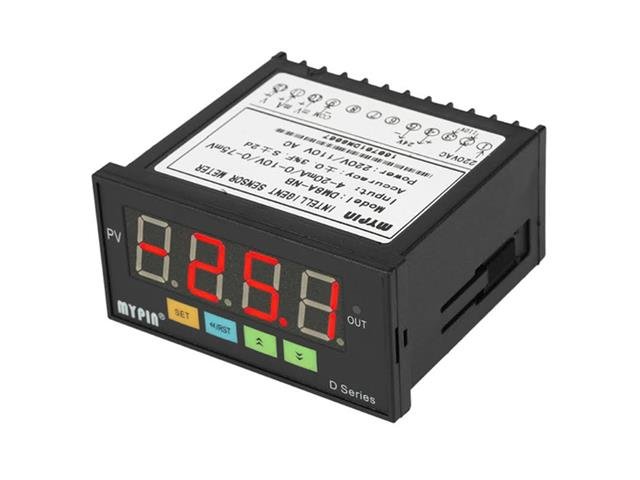

Multi-functional Sensor Meter
Overview
The instrument can measure any range of Current or Voltage signal input. The user can select data remained or peak value remained. The instrument can be used with 2 wire transmitter, pressure sensor, 4 wire weight sensor and so on. For nonlinear input, the instrument can process for 20 stages.
Specifications
Input Types
- Current Input - mA
- Range: 0~1mA. 0~10mA. 4~20mA
- Input impedance: ≤150Ω
- Factory setting: 4~20mA
- Voltage Input - V(AV/DV)
- Range: 0~5V. 0~10V. 0~500V
- Input impedance: ≤200KΩ
- Factory setting: DC 0~10V
- Millivolt Input - mV
- Range: 0~10mV. ±100mV
- Input impedance: ≤ 2MΩ
- Factory setting: 0~75mV
- Resistance Input, Rt, Pt & Tc
- Rt 0~400Ω, 0~10K, Cu50 Cu100-50~150°C
- Pt Range: -200~650°C
- Tc(R S J E K T B) Range: 0-1800°C
Downloads
Additional Information
| Device | Meter |
| Type | Multi-functional | Sensor |
