Time Delay Off Relay Board (Jumper Set)-12V. 8 Range ADJ 1S-1HR. 250VAC/10A & 30VDC/10A

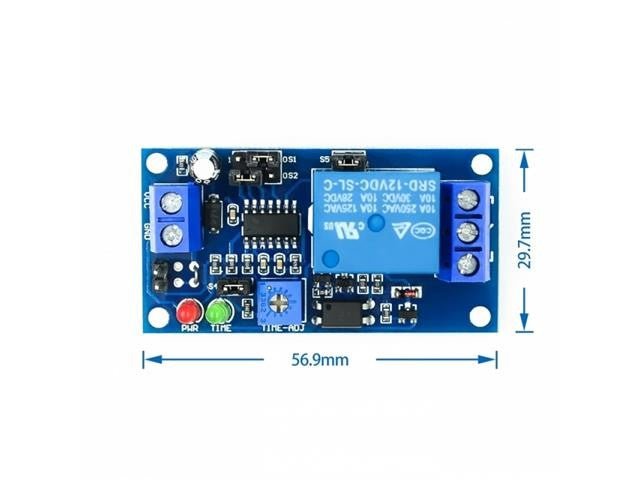

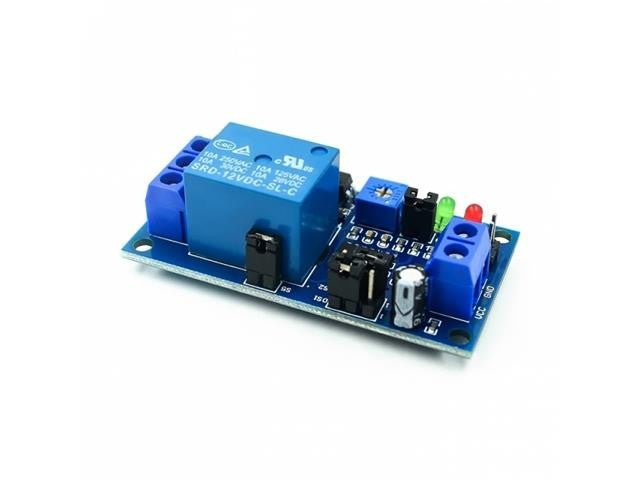

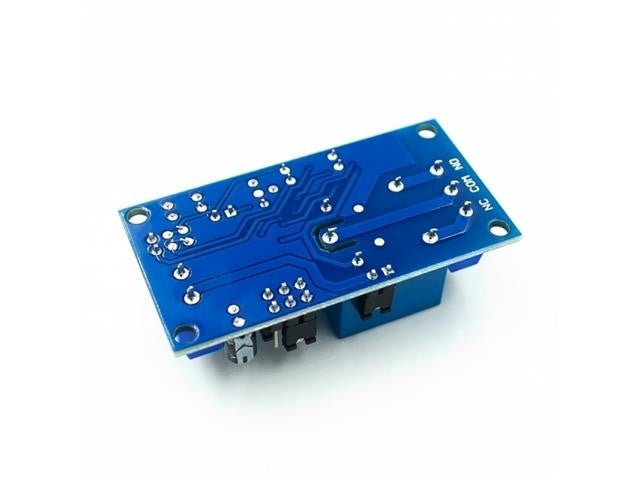

Time Delay Off Relay Board
Features
- 8 Time Ranges selectable from 0.1s up to 1 hour
- Power reversal Protection with protection diode
- Can be accessed by a large current load (250VAC 10A or 30VDC 10A)
- Delay Time adjustable with the potentiometer.
- Delay Control : Turn OFF Delay : Plug on S6
Specifications
- Input Voltage : 12V
- Quiescent Dissipation : 5.5mA
- Maximum Power Consumption : 42mA
- Relay Load Capacity :
- 250V 10A AC (2500W ideal power AC)
- 30V 10A DC (300W ideal power DC)
Additional Information
| Device | Relay Board |
| Type | Time Delay | Off |
