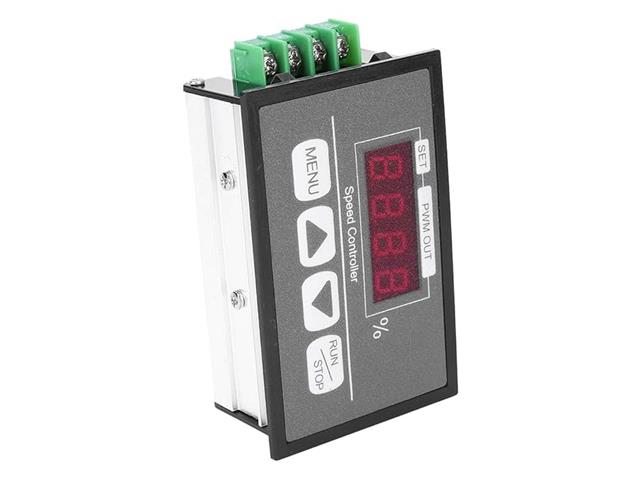

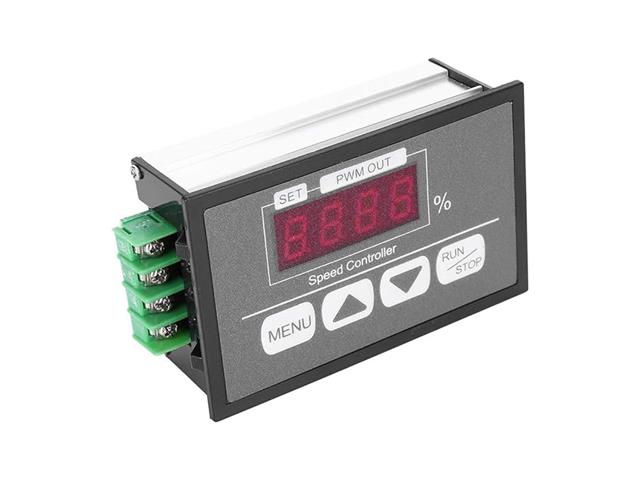

DC6-60V 12V 24V 36V 48V 30A PWM DC Motor Speed Controller
48V 30A PWM DC Motor Speed Controller
Overview
Digital Display DC 6-60V 30A PWM Motor Speed Controller Soft Start Slow Stop Motor Speed Regulator Governor Control Switch
Features
- Soft start time setting: 000-100, slow start to 100% speed time is adjustable between 0-10 seconds, the default is 1 second.
- Soft stop time setting: 000-100, slow stop time is adjustable between 0-10 seconds, the default is 1 second.
- Rotation speed lower limit setting: 000-080, the minimum speed is adjustable between 0-80%, and is less than the maximum speed setting value, the default is 0.
- Speed limit setting: 000-100, the maximum speed is adjustable between 0-100%, and is greater than the minimum speed setting value, the default is 100%.
- Acceleration and deceleration value setting: 001 002 005 010 015 020 025 Each time you press the plus and minus key, the speed changes accordingly by 1%, 2%, 5%, 10%, 15%, 20%, 25%
Specifications
- Input voltage: DC 6-60V
- Output voltage: linear under load
- Output current: 0-30A
- Continuous current: within 20A
- Speed regulation type: flow regulation
- Speed control mode: Jog +-
- Speed adjustment range: 0-100%
- Control frequency: 21kHz

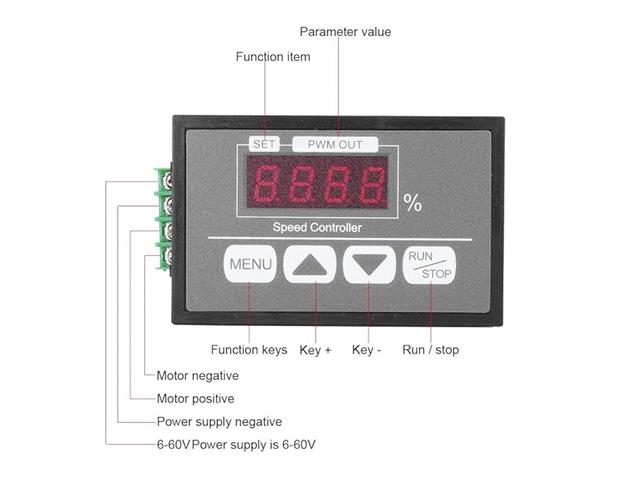

- Wiring type: barrier terminal block
- Supported motor: brush motor

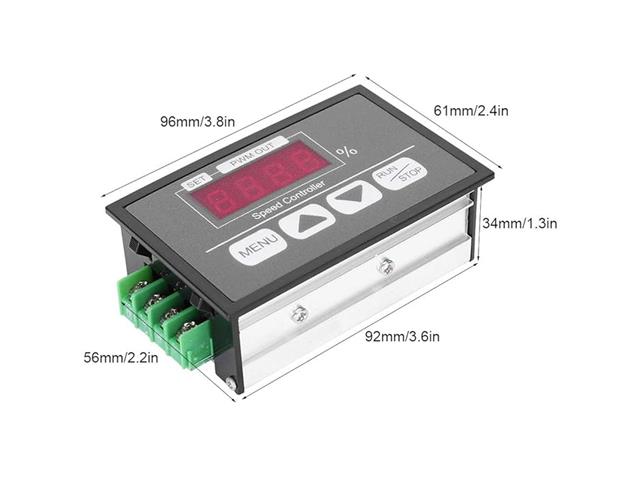

- Module size: 96*61*34mm/3.78*2.40*1.34"
- Panel opening: 92*56mm/3.62*2.20"
- Speed digital display: 0-100%
Downloads
Additional Information
| Device | Speed Controller |
| Type | 48V | 30A | PWM | DC |
