Product Details

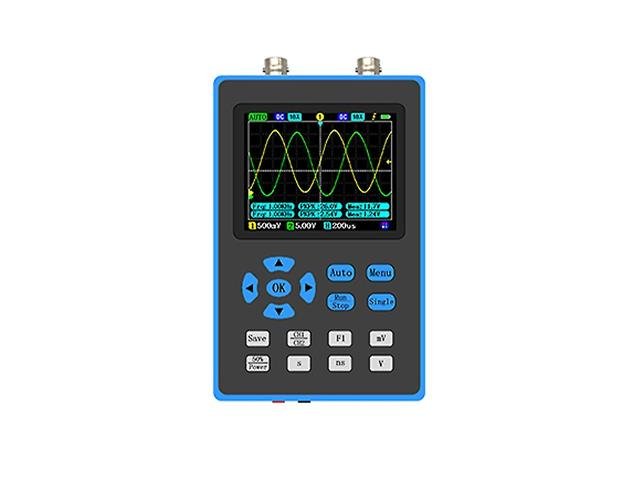

DSO2512G Oscilloscope Portable Handheld Dual Channel 2.8 Inch Display, 120MHz
Portable Handheld Dual Oscilloscope

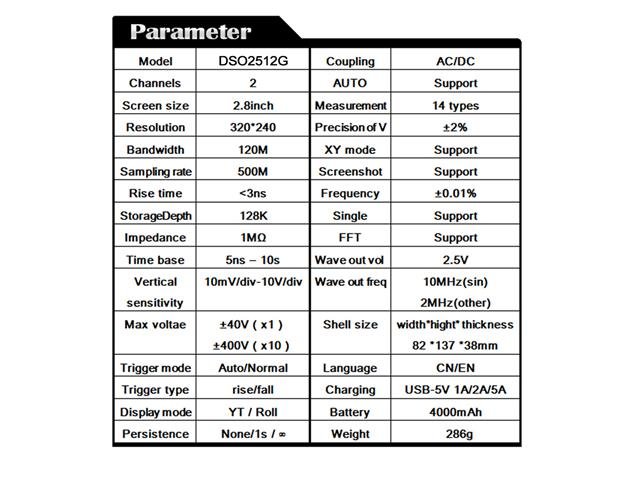

Specifications
- Material: ABS
- Channels: 2
- Coupling: AC/DC
- Precision of V: ±2%
- Bandwidth 120M

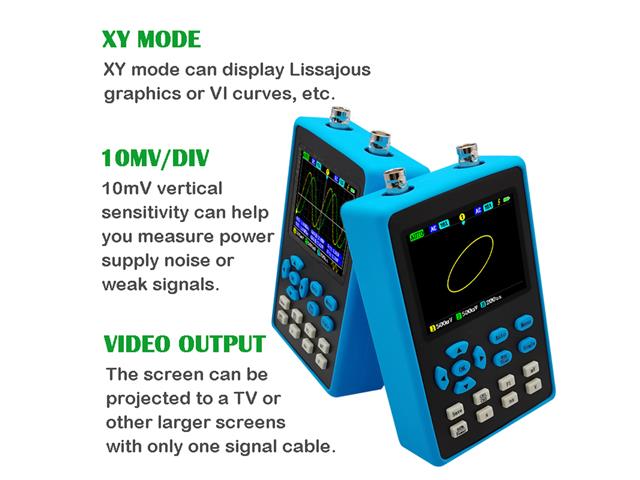

- XY mode: support
- Sampling rate: 500M
- Screenshot: support
- Rise time: <3ns
- Frequency: ±0.01%
- Storage depth: 128Kbit
- Sin-gle: support
- Impedance: 1MΩ
- FFT: support
- Time base: 5ns~10s
- Wa-ve out amp: 2.5V
- Ver sensitivity: 10mV/div~10V/div

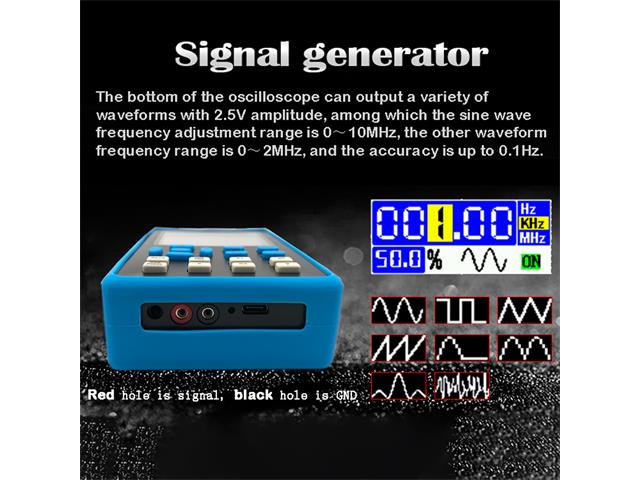

- Waves out freq: 10MHz(sin) 2MHz(other)
- Max voltage ±40V(x1), ±400V(x10）
- Trigger type: rise/fall
- Display mode: YT/Roll
- Persistence: None/1s /∞
- Battery: 1 * lithium battery, 4000mAh (included)
- Package size: 210 * 140 * 115mm / 8.3 * 5.5 * 4.5in
- Package weight: 689g / 1.5lb

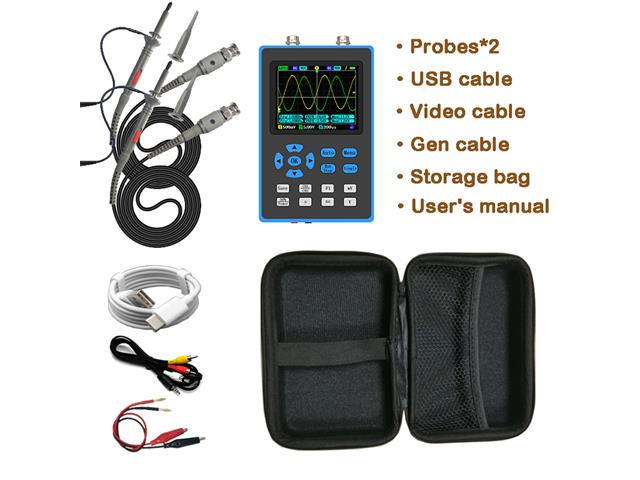

Packing list:
- 1 * Oscilloscope
- 2 * Probes
- 1 * Video Cable
- 1 * Gen Cable
- 1 * Storage Bag
- 1 * User Manual
Downloads
Additional Information
| Device | Oscilloscope |
| Type | Portable | Handheld | Dual |
