Product Details
Digital Thermostat Temperature Module Xh-w1209 With Led Display And Relay Output. -50-110Deg C. Psu:12Vdc O/p: 10A Max. See Enclosure For This Item-- Hkd Digital Temp Control Enclosure

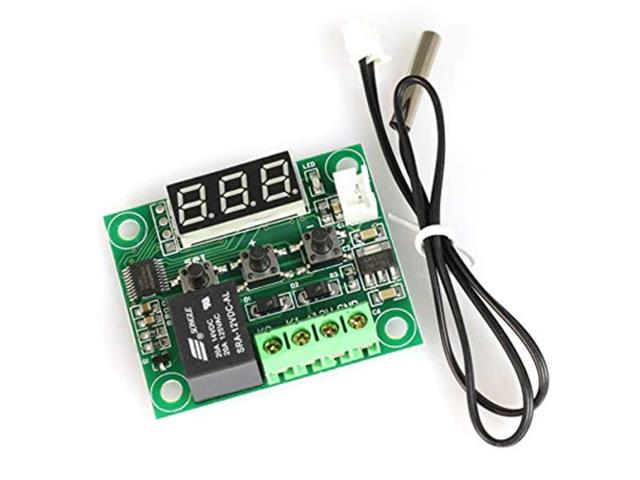

Digital Thermostat Temperature Module
Specifications
- Supply voltage: DC 12V (MAX) if spikes higher than 12V add an extra Buck converter for smoothing.
- Static current: ≤35MA, attract current ≤65MA
- Output power: 10A relay
- Measurement input: NTC (10K 0.5%) Waterproof Sensor
- Environmental requirements: -10 ~ 60°C, Humidity 20% ~ 85%

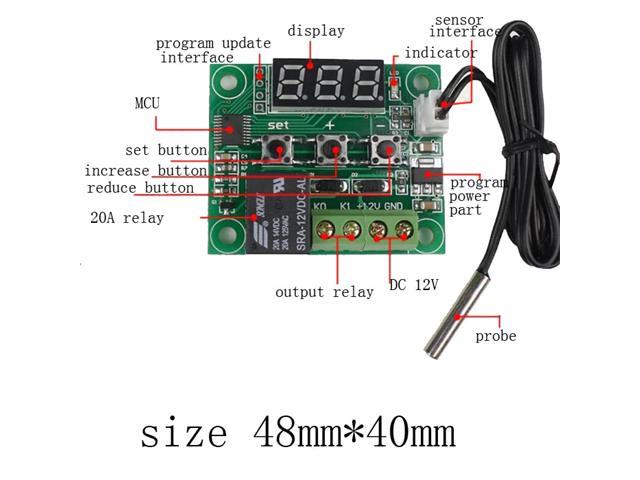

- Dimensions: 48 x 40mm
- Cable length: About 52 cm
- Temperature control mode: ON / OFF
- Temperature range: -50 ~ +110°C
- Control accuracy: 0.1°C
- Hysteresis accuracy: 0.1°C
- Refresh rate: 0.5S
- High temperature protection: 0 ~ 110°C
- Resolution: When the temperature is 0.1°C, the resolution is -9.9~99.9, other temperature segment is 1°C
Downloads
Additional Information
| Device | Temperature Module |
| Type | Digital | Thermostat |
