Product Details

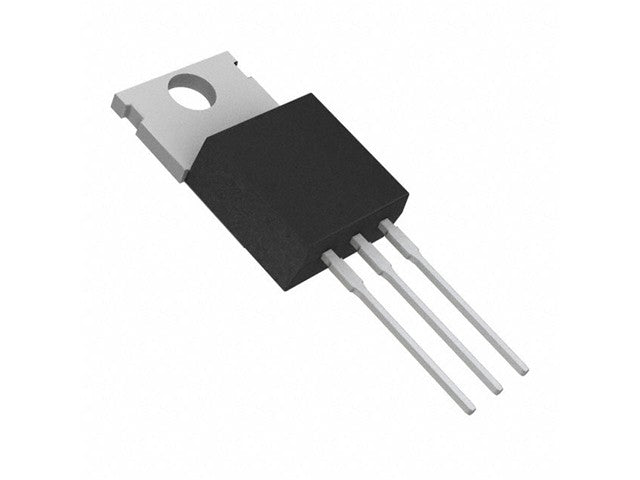

P 115V 100V 3A 25MN TO220
P 115V 100V 3A 25MN TO220
Specifications
|
Transistor Type
|
PNP |
|
Current - Collector (Ic) (Max)
|
3 A
|
|
Voltage - Collector Emitter Breakdown (Max)
|
100 V
|
|
Vce Saturation (Max) @ Ib, Ic
|
1.2V @ 600mA, 3A
|
|
Current - Collector Cutoff (Max)
|
300µA
|
|
DC Current Gain (hFE) (Min) @ Ic, Vce
|
25 @ 1A, 4V
|
|
Power - Max
|
40 W
|
|
Frequency - Transition
|
3MHz
|
|
Operating Temperature
|
-65°C ~ 150°C (TJ)
|
|
Mounting Type
|
Through Hole
|
|
Package / Case
|
TO-220-3
|
Downloads
Additional Information
| Device | Transistor |
