Product Details
P 32V 200MA SOT23
P 32V 200MA SOT23
Specifications
-
- Type: PNP
- Collector-Emitter Voltage, max: -32 V
- Collector-Base Voltage, max: -32 V
- Emitter-Base Voltage, max: -5 V
- Collector Current − Continuous, max: -0.1 A
- Collector Dissipation: 0.35 W
- DC Current Gain (hfe): 380 to 630
- Noise Figure, max: 6 dB
- Operating and Storage Junction Temperature Range: -55 to +150 °C

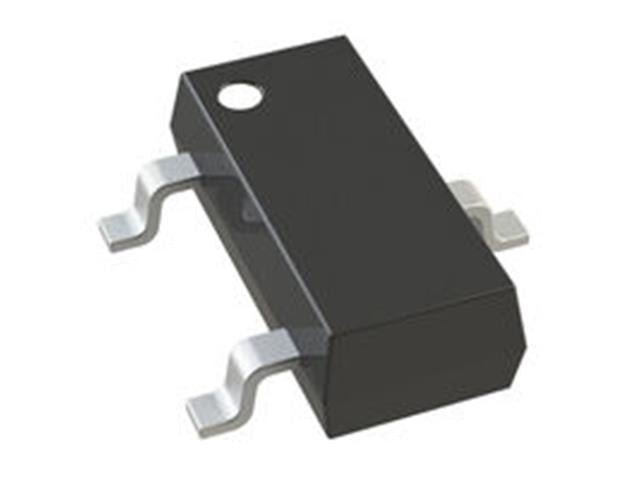

- Package: SOT-23
Additional Information
| Device | Transistor |
