• Maximum Collector Power Dissipation (Pc): 0.625 W
• Maximum Collector-Base Voltage |Vcb|: 40 V
• Maximum Collector-Emitter Voltage |Vce|: 30 V
• Maximum Emitter-Base Voltage |Veb|: 10 V
• Maximum Collector Current |Ic max|: 0.4 A
• Max. Operating Junction Temperature (Tj): 150 °C

Electrical Characteristics

• Transition Frequency (ft): 120 MHz
• Collector Capacitance (Cc): 5 pF
• Forward Current Transfer Ratio (hFE), MIN: 30000

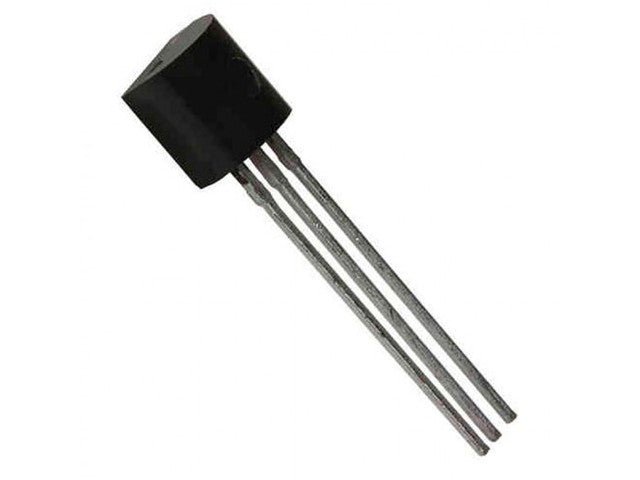

• Package: TO92
