• Maximum Collector Power Dissipation (Pc): 0.3 W
• Maximum Collector-Base Voltage |Vcb|: 30 V
• Maximum Collector-Emitter Voltage |Vce|: 20 V
• Maximum Emitter-Base Voltage |Veb|: 5 V
• Maximum Collector Current |Ic max|: 0.1 A
• Max. Operating Junction Temperature (Tj): 125 °C

Electrical Characteristics

• Transition Frequency (ft): 150 MHz
• Collector Capacitance (Cc): 5 pF
• Forward Current Transfer Ratio (hFE), MIN: 200

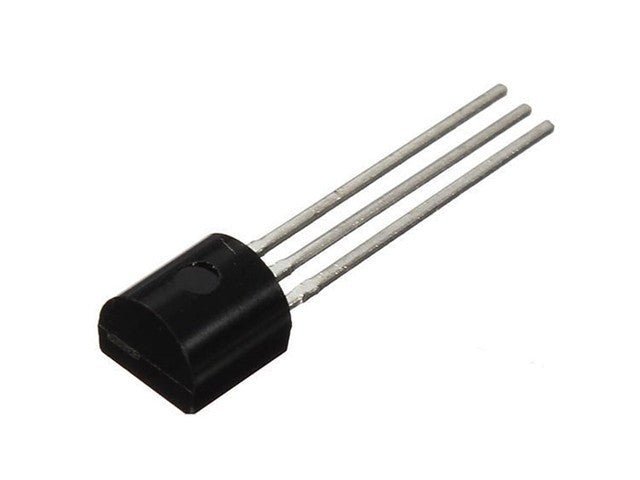

• Package: TO92
