Product Details

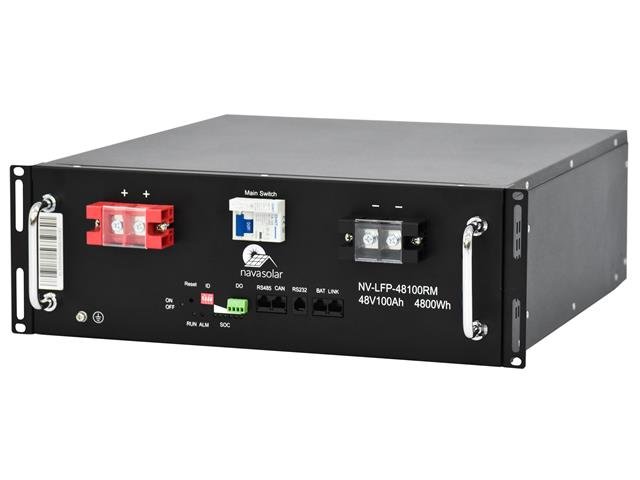

Navasolar Lithium Ion Rechargeable Battery 48V 100A 4.8KWH, OPV:42~53.5V, Charge Current:30A (100A Max), Discharge Current:100A,80% DoD, Cycle Life:>4000, Parallel MAX16, CAN/RS485, 442x470x154mm, 45kg, Only Compatible with: NAVA 5KX 48VDC
Lithium Ion Rechargeable Battery
Specifications
- Nominal Voltage : 48V
- Normal Capacity : 4.8kWh
- Usable Capacity : 4.46kWh
- Operating Voltage : 42 ~ 53.5V
- Rated Charging Current : 30A (100A Max)
- Rated Discharging Current : 100A
- Max. Discharging Power : 4.2kW
- Max Charging Power : 5.35kW
General Data
- Dimension (W/D/H) : 442/470/154mm
- Weight : 45Kg
- Working Temperature : 0°C~+55°C
- Storage Temperature : -20°C~+55°C
Features
- DOD : 80%
- Cycle Life : >4000 times
- Parallel Connection : Max .16packs
- Communication Port : CAN/RS485
- Warranty : 5 Years
Downloads
Additional Information
| Device | Battery |
| Type | Lithium Ion | Rechargeable |
