Product Details

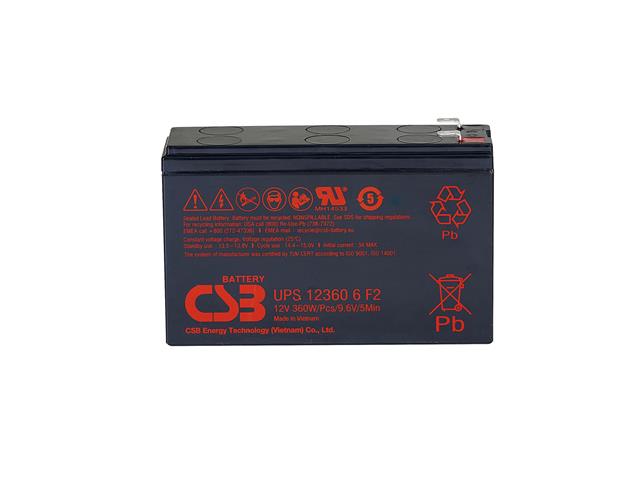

Rechargeable Battery 12V6.5AH (L=150 W=51 H=94mm) F2 Terminal 6.4mm 1.97kg
Rechargeable Battery 12V6.5AH
Specifications
- Norminal Voltage : 12V (6 cells per unit)
- Norminal Capacity : 360W @5min-rate to 9.60V per PCS @25°C (77°F)
- Weight : Approx. 1.97 Kg (4.34 lbs)
- Maximum Discharge Current : 100/130 A (5sec)
- Internal Resistance: Approx. 20.70 mΩ
- Short Circuit Current : 325A
- Maximum Charge Current : 3.0 A
- Terminal types : F1/F2 terminal -Faston Tab 187/250
Dimession (±2mm)
- Length, mm : 150.9±2.0 mm 5.94±0.08 inch
- Width, mm : 51.0±1.0 mm 2.01±0.04 inch
- Container Height (h) : 94.3±1.0 mm 3.71±0.04 inch
- Overall Height (H) : 98.6±1.0 mm 3.88±0.04 inch
Downloads
Additional Information
| Device | Battery |
| Type | Rechargeable |
