Product Details

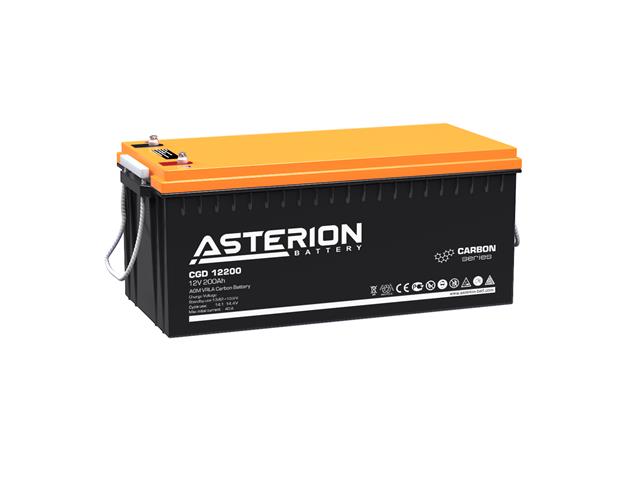

Rechargeable Battery 12V200AH Lead Carbon (L=522 W=238 H=218mm) M8 Terminal 62.5kg
Rechargeable Battery 12V200AH
Specifications
- Nominal voltage : 12V
- Cell : 6
- Design life : 15 Years
- Nominal capacity (25°С)
- 20 hours rate (0,45 A; 1,75 V/cell) : 200 Ah
- 10 hours rate (0,86 A; 1,75 V/cell) : 181 Ah
- 5 hours rate (1,57 A; 1,75 V/cell) : 121 Ah
- Self Discharge : 3% capacity per month 25°C
- Internal Resistance (25°C) : 10mΩ
Operating Temperature Range
- Discharge : -20~60°C
- Charge : -10~60°C
- Storage : -20~60°C
- Maximum discharge current (25°C) : 660A (5s)
- Cycle Mode (2,35~2,4 V/cell)
- Max.charge current : 100-200* A
- Temperature correction factor : 30m V/°C
- Standby mode (2,25÷2,3 V/cell)
- Temperature correction factor : 20 mV/°C
Dimensions (±2mm)
- Weight (±3%), kg :62,5
- Height over terminals, mm : 223
- Height, mm : 218
- Width, mm : 238
- Length, mm : 522
Downloads
Additional Information
| Device | Battery |
| Type | Rechargeable |
