Product Details

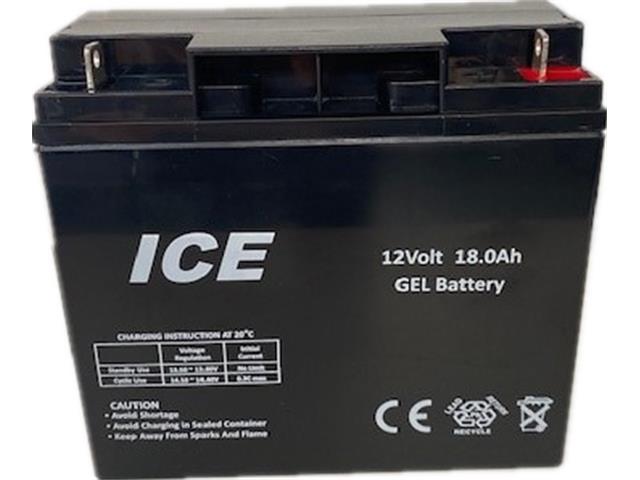

Rechargeable Battery Gel 12V18Ah {L=181 W=77 H=167mm} F3 Terminal ID:5.4mm for M5 Bolt & Nut, 5.1Kg
12V18Ah Gel Rechargeable Battery
Specifications
- Nominal Voltage : 12V
- Rated Capacity (10hr Rate) : 18Ah
- Dimensions
- Length : 181mm (7.13 inches)
- Width : 77 mm (3.03 inches)
- Height : 167mm (6.57 inches)
- Total Height : 167mm (6.57 inches)
- Weight Approx : 5.1 Kg (11.22 lbs)
Characteristics
- Capacity 77°F(25°C)
- 20 hour rate (0.9 A) : 18.0 Ah
- 10 hour rate (1.66A) : 16.6 Ah
- 5 hour rate (3.0 A) : 15.3 Ah
- 1 hour rate (10.8 A) : 10.8 Ah
- 1.5 hour discharge to 10.5V : 6.8 A
- Internal Resistance
- Full Charged, 77°F(25°C) : 13.0mΩ
- Affected By Temperature (10hr Rate)
- 104°F(40°C) : 102%
- 77°F(25°C) : 100%
- 32°F(0°C) : 85%
- 5°F(-15°C) : 65%
- Self-Discharge 77°F(25°C)
- Capacity after 3 month storage : 91%
- Capacity after 6 month storage : 82%
- Capacity after 12 month storag : 64%
Charge (Constant Voltage)
- Initial Charge Current “LESS” than 5.4A
- Cycle : 14.10V–14.40V
- Float : 13.50V–13.80V
Downloads
Additional Information
| Device | Battery |
| Type | 12V18Ah | Gel | Rechargeable |
