Product Details

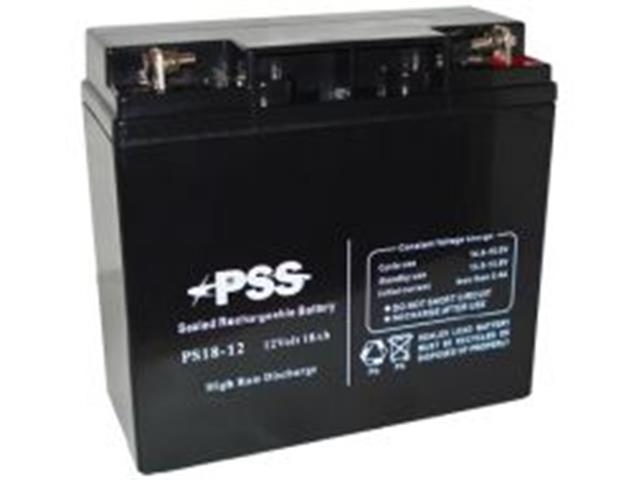

Rechargeable Battery 12V18AH (L=181 W=77 H=167mm) F3 Terminal ID:5.4mm for M5 Bolt & Nut, 5.2KG
Rechargeable Battery 12V18AH
Specifications
- Nominal Voltage : 12V
- Rated Capacity (20hr Rate) : 18Ah
- Dimensions
- Length : 181mm
- Width : 77mm
- Height : 167mm
- Total Height : 167mm
- Approximate Weight : 5.2kg
- Capacity 77°F(25°C)
- 20hour rate : 18.0Ah
- 10hour rate : 17.1Ah
- 5hour rate : 14.4Ah
- 1hour rate : 12.2Ah
- Internal Resistance
- Full Charged, 77°F(25°C) : 16mΩ
- Affected By Temperature (10hr Rate)
- 104°F(40°C) : 102%
- 77°F(25°C) : 100%
- 32°F(0°C) : 85%
- 5°F(-15°C) : 65%
- Self-Discharge 77°F(25°C)
- Capacity after 3 month storage : 90%
- Capacity after 6 month storage : 80%
- Capacity after 12 month storag : 60%
- Max. Discharge Current 770 F(250 C) : 255A(5s)
- Terminal : F3
- Initial Charge Current “LESS” than 5.40A
- Cycle : 14.4–15.0V/77°F(25°C)
- Stand By : 13.5–13.8V/77°F(25°C)
- Charge (Constant Voltage,250°C),/li>
- Cycle : 14.5~14.9V(-24mV/°C) max. current: 5.4 A
- Float : 13.6~13.8V(-18mV/°C)
Characteristics
Charge (Constant Voltage)
Downloads
Additional Information
| Device | Battery |
| Type | Rechargeable |
