Product Details

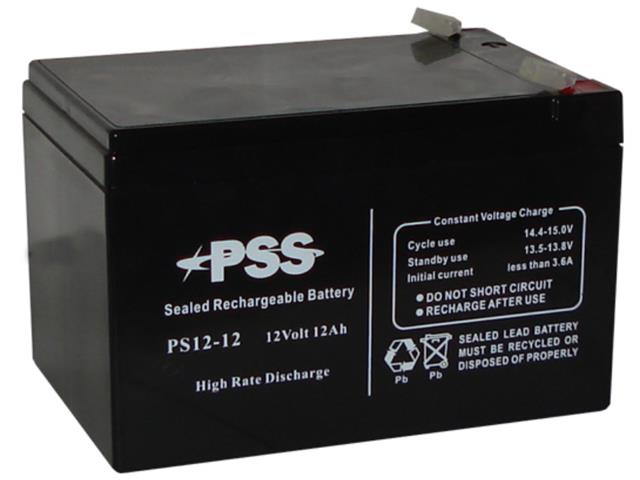

Rechargeable Battery 12V12AH (L=151 W=98 H=101mm) F2 Terminal 6.35mm 3.6kg
Rechargeable Battery 12V12AH
Specifications
- Nominal Voltage : 12V
- Rated Capacity : 12Ah
- Dimensions
- Total Height : 3.98 inches (101mm)
- Height : 3.74 inches (95mm)
- Length : 5.95 inches (151mm)
- Width : 3.86 inches (98mm)
- Approximate Weight : 7.92 lbs. (3.6kg)
- Capacity 77°F(25°C)
- 20h rate : 12Ah
- 10h rate : 11.2Ah
- 5h rate : 10.1Ah
- 1h rate : 7.49Ah
- 15 min rate : 5.52Ah
- Internal Resistance
- Full Charged Battery 77°F(25°C) : Approx. 20mΩ
- Capacity Affected by Temperature (20h rate) :
- 104°F(40°C) : 102%
- 77°F(25°C) : 100%
- 32°F(0°C) : 85%
- 5°F(-15°C) : 65% .
- Self-Discharge 68°F(20°C) (Capacity after)
- 3 month storage : 90%
- 6 month storage : 80%
- 12 month storage : 60%
- Max. Discharge Current 77°F(25°C) : 180A(5s)
- Terminal : T2
- Charge (Constant Voltage,25°C)
- Cycle : 14.5~14.9V(-24mV/°C) max. current:3.6 A
- Float : 13.6~13.8V(-18mV/°C)
Characteristic
Downloads
Additional Information
| Device | Battery |
| Type | Rechargeable | 12V12AH |
