Product Details

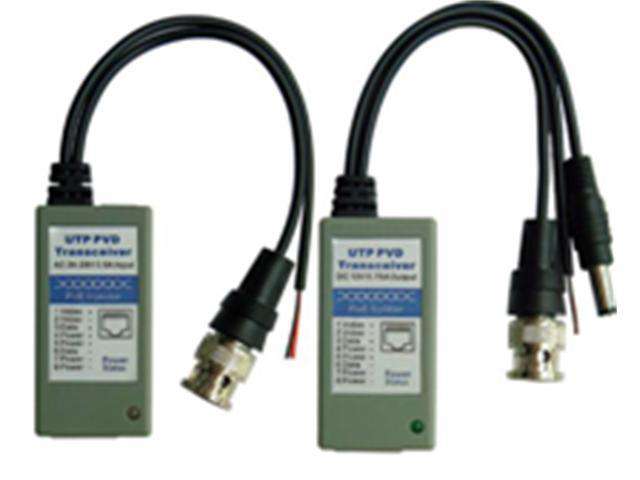

Balun 12V DC/DC Converter PoE type Passsive PVD [Power/Video/Data(audio)] Transmisson over UTP
Overview
Features
Specification
- PoE type Passsive PVD [Power/Video/Data(audio)] Transmisson over UTP
- Transmission Distance : Max 300m (Color) or 600m (B/W)
- Power :
- Receiver Input 36V/0.5A
- Transmitter Output 12V/0.75A at 300m
- Video Format : NTSC/PAL/CCIR/SECAM Analog Real-time Signal
- Frequency Range : DC--6MHz
- Common Mode Rejection : 60db
- Connector : RJ45, BNC(male), Data Wire(PVD) or RCA(PVA), DC in/out
- Surge-Suppression : 6KV 1.5x50us IEEE587 B3 / 3KV 8x20us
- Dimensions without cable : 54x23x28mm
- Weight : 48g single / 106g one pair with box
