Product Details

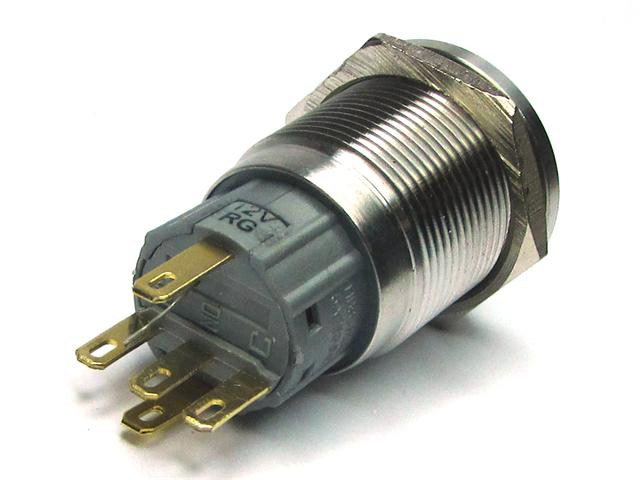

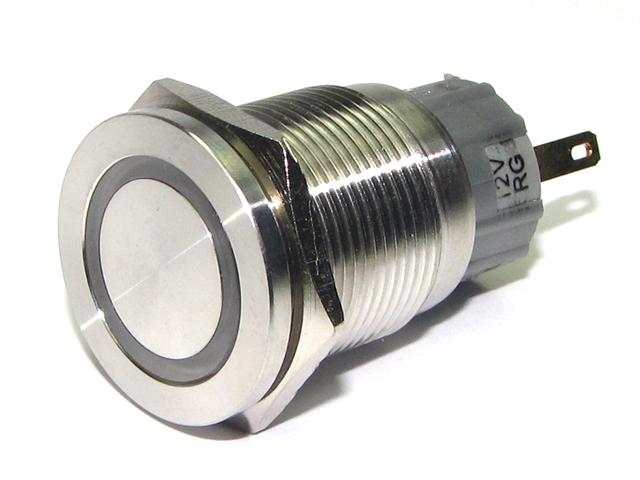

Ø19mm Vandal Resistant Stainless Steel IP65 Round Flat Hyper Plane Push Button and 24V Red/Green LED Ring Illuminated Switch with 1N/O 1N/C Latch Operation 5A-250VAC Rating
Downloads
Additional Information
| Device | Switch |
| Type | Push Button |
| Highlights | Vandal Resistant | Stainless Steel | IP65 | Hyper Plane |
| Transition Style | Latching |
| Actuator Style | Round Flat Hyper Plane Push Button |
| Operation Type | Latch |
| Termination | Solder-Lug |
| Switch Circuit | 1N/O 1N/C |
| Voltage Rating | 250V |
| Voltage Type | AC |
| Current Rating | 5A |
| Contact Rating | 5A @ 250VAC |
| LED Colour | Red/Green |
| LED Voltage | 24V |
| Indicator | Ring Illuminated |
| Size | Ø19mm |
| IP Rating | IP 65 |
