Product Details

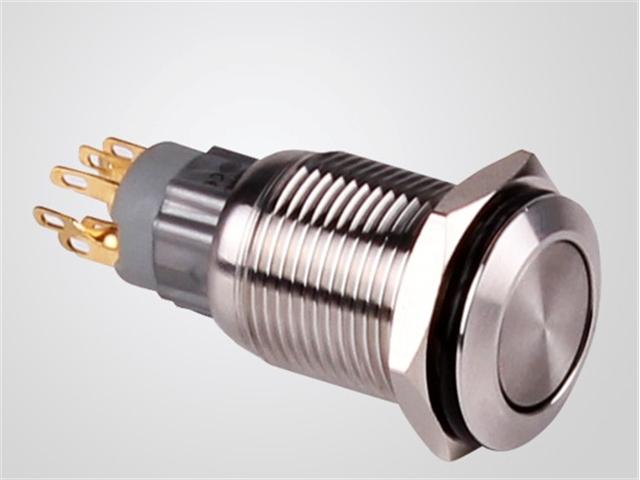

Vandal Resistant Push Button Switch 19mm Momentary Flat Button. Green Ring LED 12V-1n/o – 1n/c 5A-250VAC -IP65- Stainless. Steel (Anti Vandal)
Vandal Resistant Push Button Switch
Downloads
Additional Information
| Device | Switch |
| Type | Vandal Resistant | Push Button |
| Transition Style | Latching | Momentary |
| Actuator Style | Flat Push Button |
| Operation Type | Latch |
| Switch Circuit | 1NO-1NC |
| Voltage Rating | 36V |
| Voltage Type | DC |
| Current Rating | 2A |
| Switch Rating | 3A/250VAC |
| No. of Poles | 1 |
| Size | 16mm |
| IP Rating | IP67 | IK09 |
