Product Details

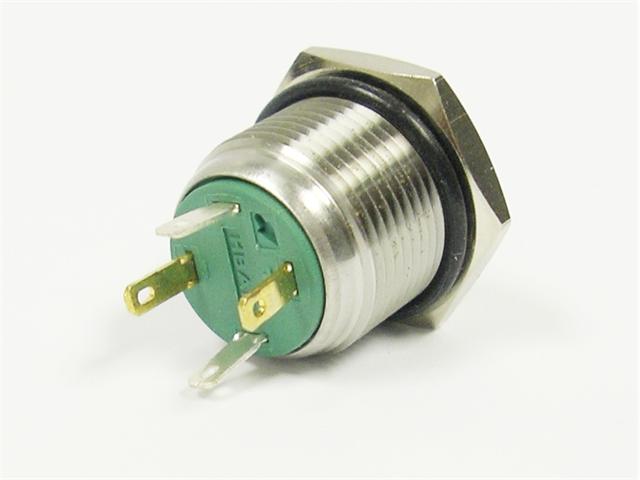

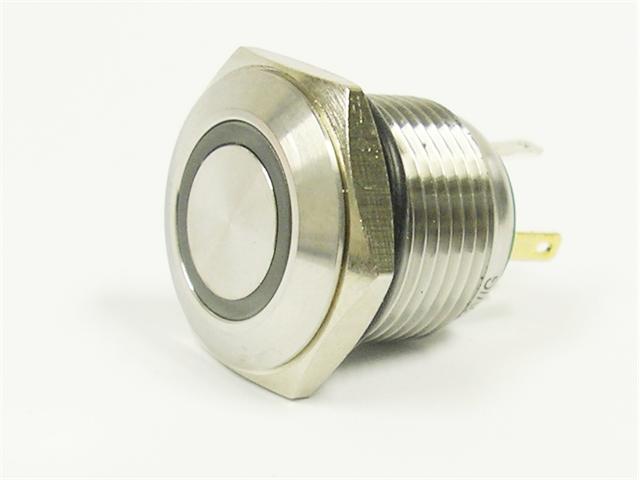

Vandal Resistant Push Button Switch 16mm Momentary Flat Button. Green RinG LED 12V 1n/o 2A-36VDC -IP65- Stainless Steel (Anti Vandal)
Vandal Resistant Push Button Switch
Downloads
Additional Information
| Device | Switch |
| Type | Vandal Resistant | Push Button |
| Transition Style | Momentary |
| Actuator Style | Round Flat Push Button |
| Operation Type | Momentary |
| Switch Circuit | 1N/O |
| Voltage Rating | 36V |
| Voltage Type | DC |
| Current Rating | 2A |
| Contact Rating | 2A @ 36VDC |
| Electrical Life | 20000 Cycles |
| No. of Poles | 1 |
| LED Colour | Green |
| LED Voltage | 12V |
| Indicator | Ring Illuminated |
| Size | Ø16mm |
| Mechanical Life | 1000000 Cycles |
| IP Rating | IP65 |
