Product Details
Wireless Low Current Dry Contact Relay, Max Load Current:5A@ 36V DC, 13A @ 230VAC, ADJ Pulse Duration: 0.5~255 sec, Frequency: 868.0~ 868.6MHz, IP20, Power Supply: 7~ 24 V(DC only), 39×33×18mm, 25g

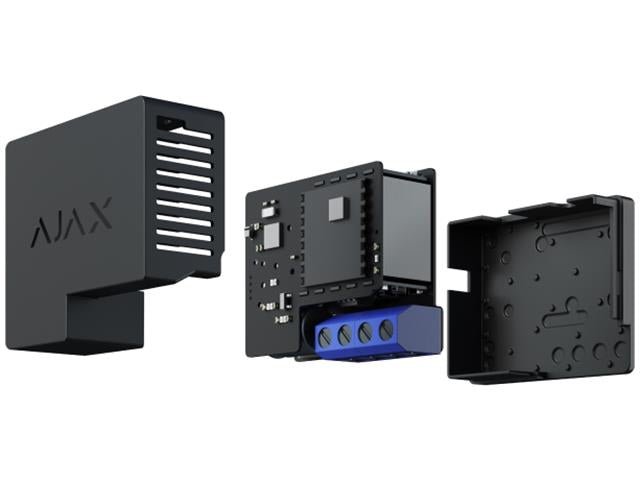

Low Current Dry Contact Relay
Overview
Settings versatility and low power consumption make Relay a universal tool for equipment control. Dry contact is not galvanically connected to the device power supply so that it can be used both in low-voltage and household networks. There are bistable and pulse modes. The relay can be easily connected to a power supply unit paired with a backup battery.
- Pulse 0.5–255 seconds
- Power supply 7–24 V DC
- Dry contact
Installation
No extra effort
Connecting Relay to the hub takes less than a minute — it's enough to scan a QR code with the Ajax app. The miniature device (39×33×18 mm) fits easily into a junction box, an electrical panel, or a switching unit body. And the flexible external antenna provides stable connectivity.
Specifications
- Classification : Radio channel relay unit
- Device type : Wireless
- Installation method : Into electric switchboard, junction box
- Compatibility : Operates with all Ajax hubs, and range extenders
- Actuating element : Electromagnetic relay
- Relay service life : 200,000 switch-ons
- Voltage protection : Max — 36.5 V, min — 6.5 V
- Maximum load current : 5A at 36V DC, 13A at 230V AC
- Maximum current protection : No
- Maximum temperature protection : > 65°C at the place of installation
- Electric power meter function : No
- Energy consumption parameter check : Voltage
- Power supply : 7 - 24 V (DC only)
Operation modes
- Impulse
- Bistable
Contact state
- Normally open
- Normally closed
- Adjustable pulse duration : 0.5–255 sec
Jeweller radio technology
- Communication range with central unit — up to 1,000 m in an open space
- Two-way communication between devices
- Operating frequencies — 868.0 - 868.6 MHz
- Self-adjusting RF output power — up to 25 mW
- Block encryption based on AES algorithm
- Device scanning period — 12 - 300 s
- Operating temperature range : From 0°С to +64°С
- Permissible humidity : Up to 75%
- Protection class of body : IP20
Anti-sabotage
- Protection against fraud
- Jamming detection
Remote setting and testing : +
Dimensions : 39 × 33 × 18 mm
Weight : 25 g
Warranty : Replacement and repair within 24 months of the date of sale.
Complete set
- Relay
- Installation set
- User's guide
Downloads
Additional Information
| Device | Relay |
| Type | Low Current | Dry Contact |
