Product Details

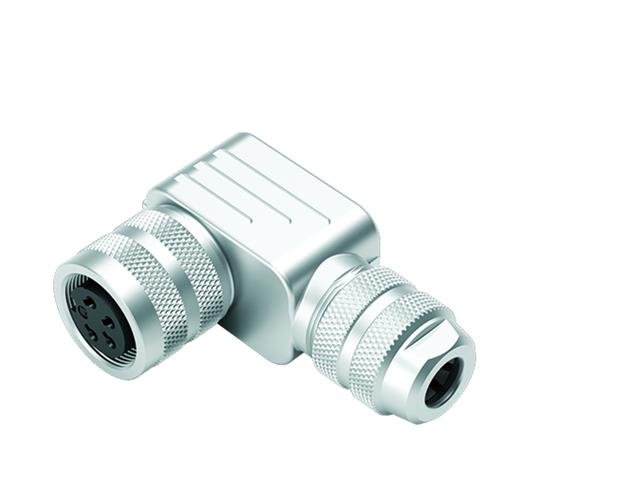

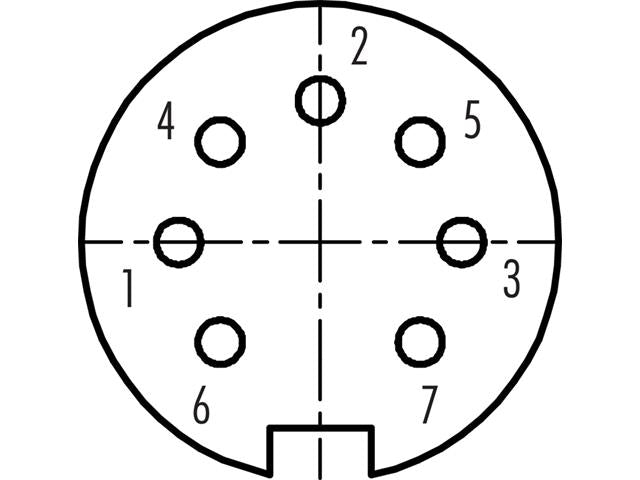

Circular Connector M16 Cable Female Right Angled 7 Pole DIN Screw Lock 8mm Cable Entry Shielded IP67
M16 Cable Circular Connector
Specifications
- Connector design : female angled connector
- Version : connector female angled
- Connector locking system : screw
- Termination : screw
- Degree of protection : IP67
- Cross-sectional area : max. 0.75 mm² / max. AWG 18
- Cable outlet : 6.0 - 8.0 mm
- Twistability : 90° (4 coding options)
- Temperature range from/to : -30 °C / 95 °C
- Mechanical operation : > 500 Mating cycles
- Weight (g) : 65.91
Electrical parameters
- Rated voltage : 60 V
- Rated impulse voltage : 800 V
- Rated current (40 °C) : 5,0 A
- Insulation resistance : ≥ 10¹⁰ Ω
- Pollution degree : 3
- Overvoltage category : I
- Insulating material group : III
- EMC compliance : shieldable
- Shield connection : shielding ring
Material
- Housing material : CuZn (Brass nickel plated)
- Contact body material : PBT (UL94 V-0)
- Contact material : CuSn (bronze)CuZn (brass)
- Contact plating : Ag (silver)
- REACH SVHC : CAS 96-45-7 (Imidazolidine-2-thione) CAS 7439-92-1 (Lead)
Downloads
Additional Information
| Device | Connector |
| Type | M16 | Cable | Circular |
