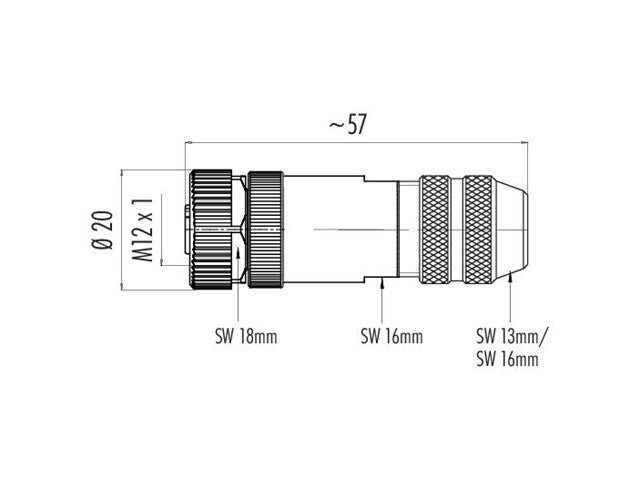

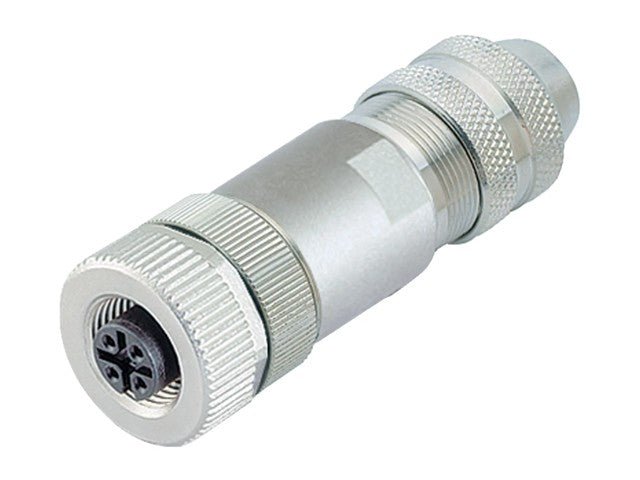

Circular Connector M12 B COD Cable Female Straight. 5 Pole Screw Terminal 8,5mm Cable Entry Ring Shield IP67
M12 B COD Cable Female Circular Connector
Specifications
| Connector design |
Female cable connector |
| Type standard |
DIN EN 61076-2-101 |
| Version |
Connector socket straight |
| Connector locking system |
screw |
| Termination |
screw clamp |
| Degree of protection |
IP67 |
| Connection cross-section |
max. 0.75 mm² / AWG 18 |
| Cable outlet |
6.5-8.5 mm |
| Temperature range from/to |
-40 °C / 85 °C |
| Mechanical operation |
> 50 Mating cycles |
| Weight (g) |
46.19 |
| Customs tariff number |
85369010 |
| Country of Origin |
HU |
| Rated voltage |
60 V |
| Rated impulse voltage |
1500 V |
| Rated current |
4.0 A |
| Insulation resistance |
≥ 1010 Ω |
| Pollution degree |
3 |
| Overvoltage category |
II |
| Insulating material group |
III |
| EMC compliance |
shieldable |
| Shield connection |
Shielding ring |
Downloads
Additional Information
| Device |
Connector |
| Type |
M12 | B COD | Cable | Female | Circular |
