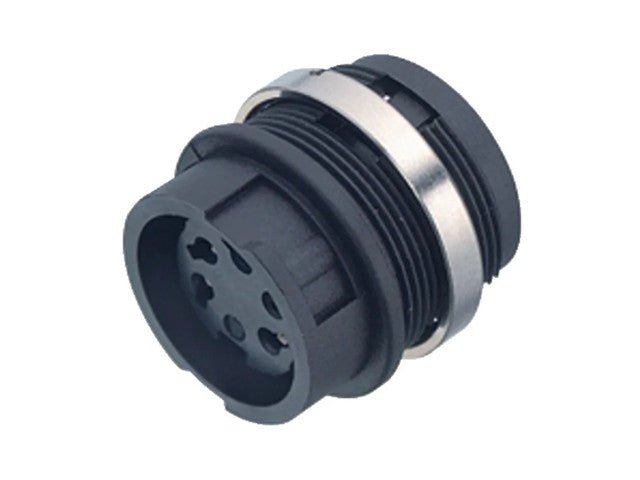

Circular Connector Bayonet Panel Female 7 Pole Solder Terminal IP40 5A 125V
Bayonet Panel Circular Connector
Specifications
| Connector design |
flange socket |
| Execution |
Connector socket straight |
| Connector locking |
bayonet |
| Connection type |
solder |
| Protection class |
IP40 |
| Connection cross-section |
max. 0.75 mm² / AWG 18 |
| Limit temperature from / to |
-40 °C / 85 °C |
| Mechanical life |
> 500 mating cycles |
| Weight (g) |
6.61 |
| Customs tariff number |
85369010 |
| Country of origin |
DE |
| Rated voltage |
125 V |
| Rated impulse voltage |
800 V |
| Rated current |
5.0 A |
| Insulation resistance |
≥ 10 1 0 Ω |
| Degree of contamination |
1 |
| Overvoltage category |
I |
| Insulating material group |
III |
| EMC compatibility |
unshielded |
| Housing material |
PA |
| Material contact body |
PBT (UL94 V-0) |
| Material Contact |
CuSn (bronze) |
| Contact surface |
Ag (silver) |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
| SCIP number |
32fc9b85-6215-4ae0-829e-dd21baa244f0 |
Downloads
Additional Information
| Device |
Connector |
| Type |
Bayonet | Panel | Circular |
