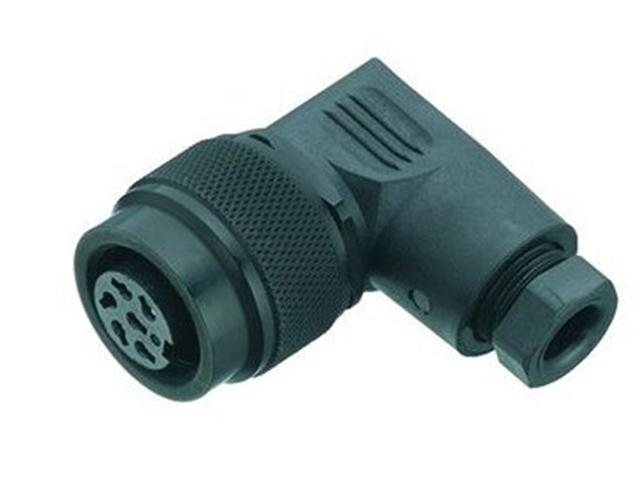

Circular Connector M16 Cable Female Right Angled 8 POLe DIN Silver Plated Contacts Solder Screw Lock 8mm Cable Entry 5A 60V IP67
M16 Cable Female Right Angled Circular Connector
Specifications
| Connector design |
Female angled connector |
| Type standard |
DIN EN 61076-2-106 |
| Version |
Connector socket angled |
| Connector locking system |
screw |
| Termination |
solder |
| Degree of protection |
IP67 |
| Connection cross-section |
max. 0.75 mm² / AWG 18 |
| Cable outlet |
6.0-8.0 mm |
| Twistability |
90° (4 coding options) |
| Temperature range from/to |
-40 °C / 95 °C |
| Mechanical operation |
> 500 Mating cycles |
| Weight (g) |
39.97 |
| Customs tariff number |
85369010 |
| Country of Origin |
DE |
| Rated voltage |
60 V |
| Rated impulse voltage |
500 V |
| Rated current |
5.0 A |
| Insulation resistance |
≥ 1010 Ω |
| Pollution degree |
1 |
| Overvoltage category |
I |
| Insulating material group |
III |
| EMC compliance |
unshielded |
Downloads
Additional Information
| Device |
Connector |
| Type |
M16 Cable | Female | Right Angled | Circular |
