Product Details

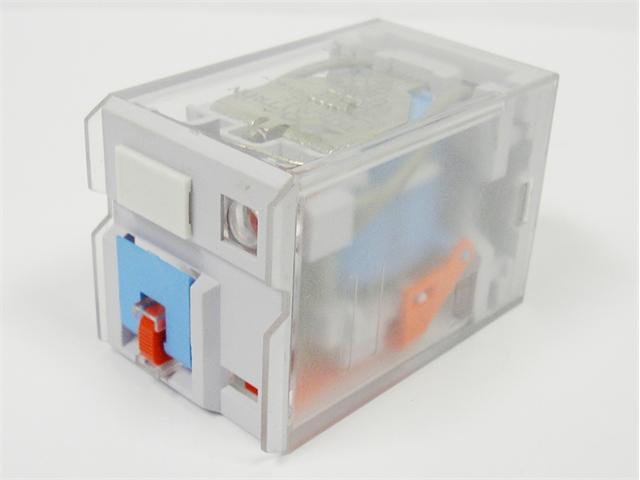

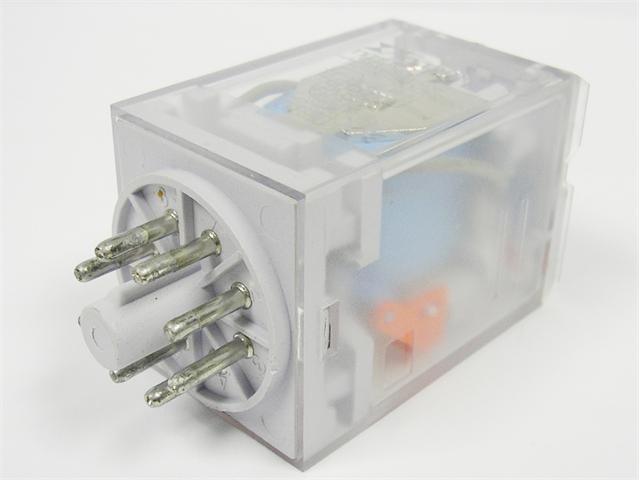

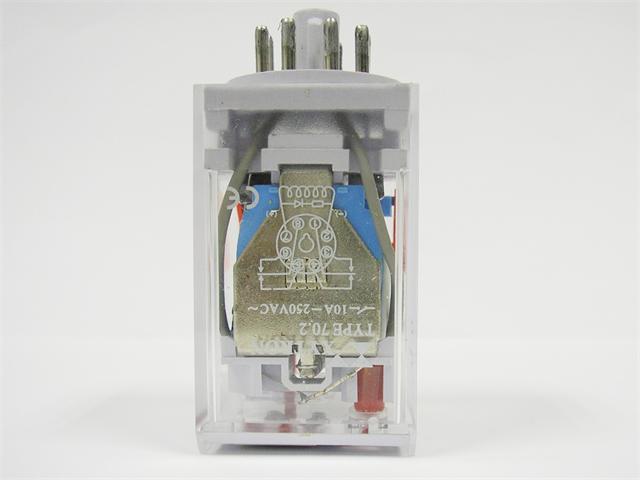

Medium Power 8 Pin(Octal) Plug-In Relay With LED & Test Clip Form 2C (2c/o) 6VDC Coil 22,5 Ohm 10A 250VAC/30VDC Contacts
Medium Power 8 Pin(Octal) Plug-In Relay
Downloads
Additional Information
| Device | Relay |
| Type | Medium Power | Plug-In |
| Highlights | Suitable Bases: P3G-08A ; PF083A-E ; 9020-E (BLUE) ; 9022-E (BLUE) US-08A. |
| Contact Form | Form 2C (2c/o) |
| Coil Rated Voltage | 6V |
| AC/DC Voltage | DC |
| Max. Switching Current | 10A |
| Electrical Rating | 250VAC/30VDC |
| Coil Resistance | 22.5Ω |
| Pin Layout | Octal |
| No. of Pins | 8 Pin(s) |
