Product Details

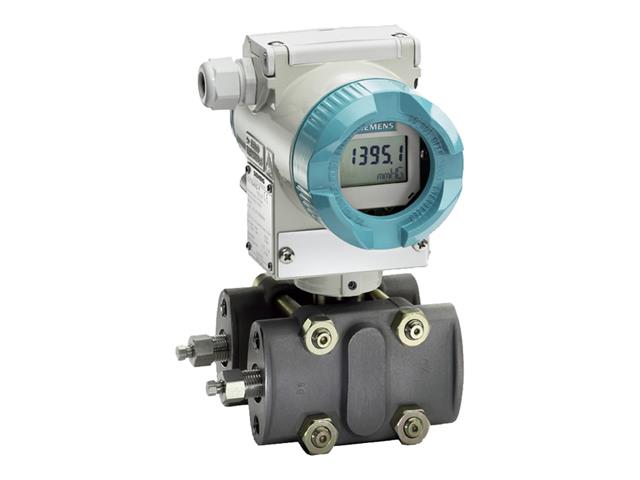

SITRANS P DS III / P410, HART,4-20 mA Pressure Transmitter Differential Pressure And Flow - special Configuration
SITRANS P DS III / P410, HART,4-20 mA Pressure Transmitter
Specifications
- Manufacturer: Siemens
- Product family: SITRANS P DS III / P410
- Type: Differential pressure and flow transmitter
- Measurement type:
- Differential pressure
- Flow measurement
- Output signal:
- 4…20 mA analog output
- HART communication protocol
- Transmission technology:
- 2-wire transmitter
- Measuring cell filling:
- Silicone oil
- Measuring span:
- 16 … 1600 mbar
- 6.424 … 642.4 inH₂O
- Maximum static pressure:
- 160 bar
- PN160 / MWP 2320 psi
- Wetted parts material:
- Stainless steel diaphragm
- Stainless steel measuring cell parts
- Process connection:
- 1/4-18 NPT
- Mounting thread: M10 (DIN 19213)
- Housing material:
- Die-cast aluminum housing
- Stainless steel process flange bolts
- Explosion protection:
- Intrinsically safe (EEx ia / Ex approved)
- Electrical connection:
- Cable gland M20 × 1.5
- Display:
- Housing cover with window
- Digital indicator configurable in mA
- Option A02:
- Stainless steel mounting bracket included
- Option B11:
- English plate inscription / labeling
- Communication features:
- HART diagnostics
- Remote configuration and calibration
- Protection features:
- Industrial EMC protection
- Overpressure resistant construction
- Intrinsic safety protection
- Mounting type:
- Process mounting with mounting bracket
- Operating environment:
- Suitable for gas and liquid applications
- Industrial and hazardous environments
- Applications:
- Industrial automation
- Oil & gas systems
- Chemical processing
- Water treatment systems
- Differential pressure flow systems
- Additional features:
- High accuracy process measurement
- Remote diagnostics capability
- Compatible with industrial process control systems
- Lifecycle status:
- Product discontinued
- Successor series: SITRANS P320 / P420
Additional Information
| Device | Transmitter |
| Type | SITRANS | P | DS | III / P410 | HART | 4-20 mA | Pressure | Transmitter |
