Product Details

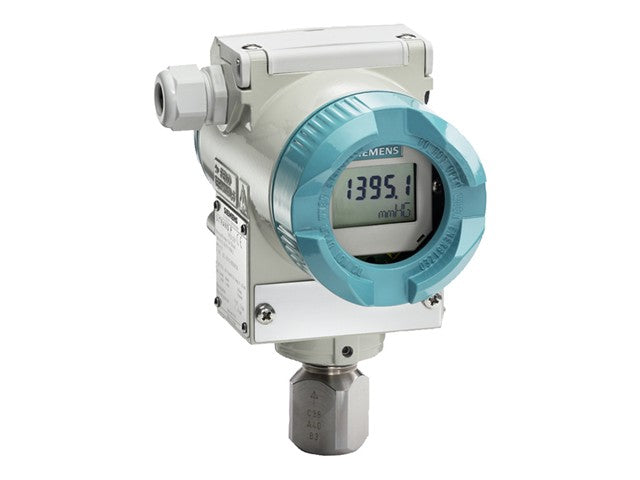

SITRANS P DS III / P410, HART,4-20 MA Transmitter For Pressure
SITRANS P DS III / P410, HART,4-20 MA Transmitter
Specifications
- Manufacturer: Siemens
- Product family: SITRANS P DS III / P410
- Type: Pressure transmitter (Gauge pressure)
- Measurement type:
- Gauge pressure measurement
- Output signal:
- 4…20 mA analog output
- HART communication protocol
- Measuring cell filling:
- Silicone oil
- Pressure range / span:
- 0.63 … 63 bar g
- (9.14 … 914 psi g)
- Overload limit:
- 100 bar
- Wetted parts material:
- Stainless steel diaphragm
- Stainless steel measuring cell
- Process connection:
- Female thread 1/2-14 NPT
- Housing material:
- Die-cast aluminum housing
- Housing design:
- Standard industrial design
- Housing cover with viewing window
- Explosion protection:
- None (standard non-Ex version)
- Electrical connection / cable entry:
- Cable gland 1/2-14 NPT
- Option A01:
- Steel mounting bracket included
- Option Y01:
- Custom measuring range specification
- Linear characteristic configured in mbar / kPa / MPa
- Option C11:
- English plate inscription / labeling
- Communication features:
- Remote diagnostics via HART
- Remote parameter configuration
- Protection features:
- Industrial EMC protection
- Overpressure resistant design
- Mounting type:
- Process mounting via threaded pressure connection
- Applications:
- Industrial automation
- Process control systems
- Oil & gas systems
- Chemical processing
- Water treatment
- Hydraulic pressure monitoring
- Additional features:
- High accuracy pressure measurement
- Suitable for industrial process environments
- Supports remote calibration and diagnostics
Additional Information
| Device | Transmitter |
| Type | SITRANS | P | DS | III / P410 | HART | 4-20 MA Transmitter | For | Pressure |
