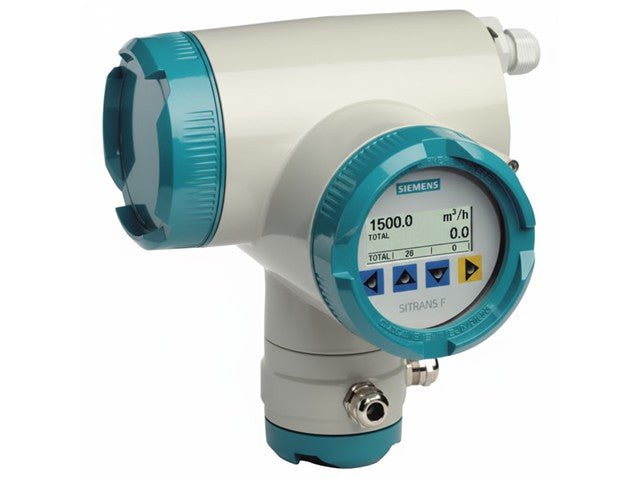

SITRANS F M Magnetoinductive Flowmeter Transmitter Transmag 2 For Alternating Field Output / Communication: 4...20MA Without HART Protocol

SITRANS F M Magnetoinductive Flowmeter Transmitter

Specifications

Product Family / Type: SITRANS F M TRANSMAG 2 magneto-inductive flowmeter transmitter
Order Code: 7ME5034-3AA11-1AA0-Z A02
Output / Communication Interface: 4-20 mA output (without HART communication)
Power Supply: AC 110–230 V
Operator Control and Monitoring Module: Equipped with operator control and monitoring module
Communication Protocol Option: Analog 4-20 mA only (no HART, Profibus, or Modbus)
Cable Gland / Connection Type: M16/M20 × 1.5 or ½″ NPT cable entries (typical for this series)
Enclosure Protection: IP67 (typical for the TRANSMAG 2 housing and cable glands)
Installation Type: Wall-mount or panel-mount transmitter for connection to remote flow sensors
Signal Input: Compatible with SITRANS F M flow sensors (e.g., TRANSMAG 911 E)
Measuring Principle: Electromagnetic induction (Faraday’s Law)
Accuracy: ±0.2 % of measured value (typical for TRANSMAG 2 system)
Display : LCD with operator keys for local configuration and indication
Ambient Temperature (operation): −20 °C to +60 °C
Ambient Temperature (storage): −40 °C to +70 °C
Relative Humidity: Up to 95 % (non-condensing)
Housing Material: Die-cast aluminum or coated metal enclosure
Degree of Protection (EN 60529): IP67
Mounting Orientation: Wall or panel mounting
Typical Applications: Industrial liquid flow measurement in water, wastewater, and process industries

Device	Transmitter
Type	SITRANS \| F M \| Magnetoinductive \| Flowmeter \| Transmitter
