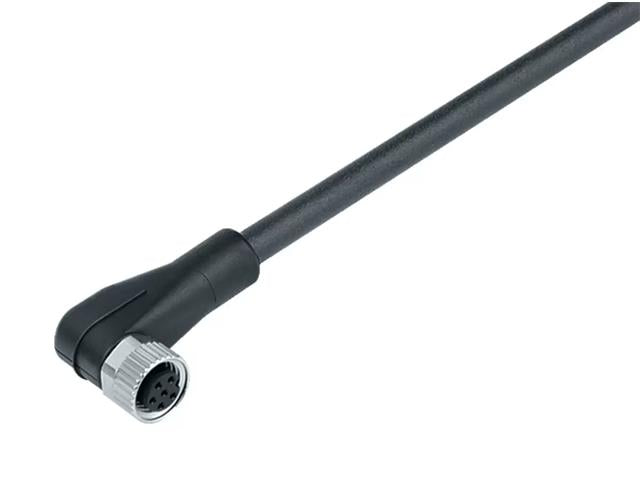

Cordset M8 Male right angled connector 3 Pole Single end - 5M PUR Cable 4A /60VDC IP67 (RKMWV3-224/5M)

Cordset M8 Male right angled connector

Feature(s)

Part no.	77 3408 0000 50003-0500 Alternative part no.: 79 3408 55 03
Connector design	Female angled connector
Type standard	DIN EN 61076-2-104
Cable length	5 m (Standard 2 m and 5 m. Other lengths are available on request.)
Version	Connector socket angled
Connector locking system	screw
Termination	moulded on the cable
Degree of protection	IP67/IP69K
Cross-sectional area	0.34 mm² / AWG 22
Temperature range from/to	-25 °C / 85 °C
Mechanical operation	> 100 Mating cycles
Weight (g)	60.00

Structure of the cable
Cable diameter	4.3 mm
Cross section	3 x 0.34 mm²
Sheath material	PUR
Single-lead insulation	PP9Y halogen-free
Single-lead structure	43 x 0.10 mm
Cable color	black
Electrical properties
Conductor resistance	60 Ω/Km (20°C)
Mechanical properties
Bending radius, fixed cable	≥ 5 x Ø
Bending radius, moving cable	≥ 10 x Ø
Bending cycles	> 5 million
Permitted acceleration	≥ 5 m/s²
Travel distance, horizontal	≥ 5 m
Travel distance, vertical	≥ 5 m
Travel speed	≤ 200 m/min
Thermal properties
Temperature range cable in move from/to	-25 °C / 80 °C
Temperature range cable fixed from/to	-50 °C / 80 °C
Other features
Halogen free	yes

Device	Cordset
Cable	5M PUR Cable
