Product Details

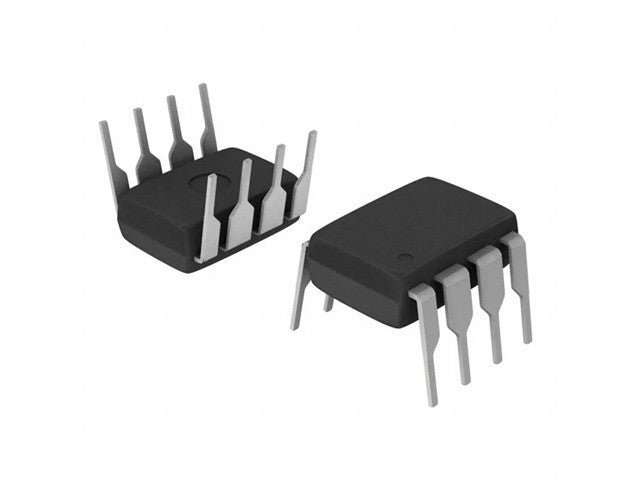

Driver Peripheral Dual 8PD
Specifications
- Logic family: TTL compatible
- Supply voltage (Vcc): 4.75 – 5.25 V
- Input HIGH (VIH): ≥ 2.0 V
- Input LOW (VIL): ≤ 0.8 V
- Output current: up to ~300 mA peak (load dependent, per channel)
- Output type: high-current driver (open-collector or saturated switch depending on variant)
- Propagation delay: ~20 ns typical
- Power dissipation: low, suitable for logic interfacing
Feature
- Two independent driver channels
- TTL-compatible inputs
- High-current outputs for peripheral loads
- Designed for driving relays, lamps, solenoids, or LEDs
- Internal protection suited for inductive loads (variant dependent)
- Compact 8-pin DIP package
Typical Applications
- Relay and solenoid drivers
- Lamp or LED driving from TTL logic
- Microprocessor or digital system output buffering
- Industrial control and interface circuits
- Peripheral device switching
Additional Information
| Device | IC |
