Product Details

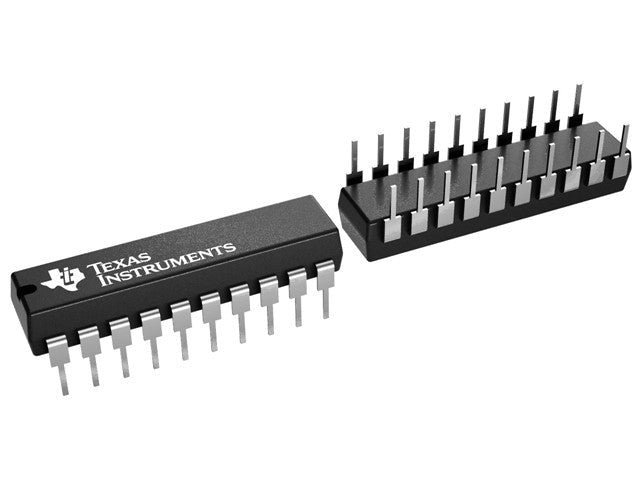

Octal General-Purpose Interface Bus Transceiver 20PD
Specifications
- Parameter : Value
- Logic Family : TTL
- Supply Voltage (Vcc) : 4.75 – 5.25 V
- Input Voltage (High) : 2.0 V minimum
- Input Voltage (Low) : 0.8 V maximum
- Output Voltage (High) (VOH) : 2.4 V minimum
- Output Voltage (Low) (VOL) : 0.4 V maximum
- Output Current : ±8 mA per line
- Propagation Delay : ~20 ns typical
- Output Impedance (High-Z) : Very high (~MΩ)
Feature
- Octal (8-bit) bidirectional transceiver.
- 3-state outputs for bus sharing.
- TTL-compatible inputs and outputs.
- Direction control for flexible bus interfacing.
- 20-pin DIP package.
Applications
- Microprocessor/microcontroller bus interfacing
- Digital signal buffering and isolation
- Bidirectional communication between memory and I/O buses
- Multi-device shared bus systems
Additional Information
| Device | Transceiver |
