Product Details

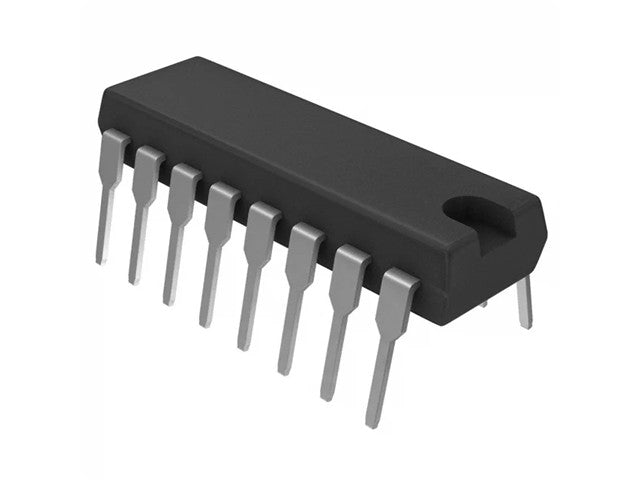

Dual Differential Line Driver 16PD
Specifications
|
Parameter |
Value |
|
Logic Family |
TTL |
|
Supply Voltage (Vcc) |
4.75 – 5.25 V |
|
Input Voltage (High) |
2.0 V minimum |
|
Input Voltage (Low) |
0.8 V maximum |
|
Output High Voltage (VOH) |
2.4 V minimum |
|
Output Low Voltage (VOL) |
0.4 V maximum |
|
Output Current (High, Low) |
±8 mA |
|
Power Dissipation |
~40 mW typical |
|
Propagation Delay |
~15 ns typical |
Feature
- Dual independent differential drivers.
- Converts TTL logic to differential signals.
- High noise immunity for long-distance transmission.
- TTL-compatible inputs.
- 16-pin DIP package.
Applications
- RS-422 / RS-485 line driving
- Data transmission over long cables
- Digital communication in noisy industrial environments
- Differential bus signaling
Additional Information
| Keywords | Driver |
| Device | Driver |
