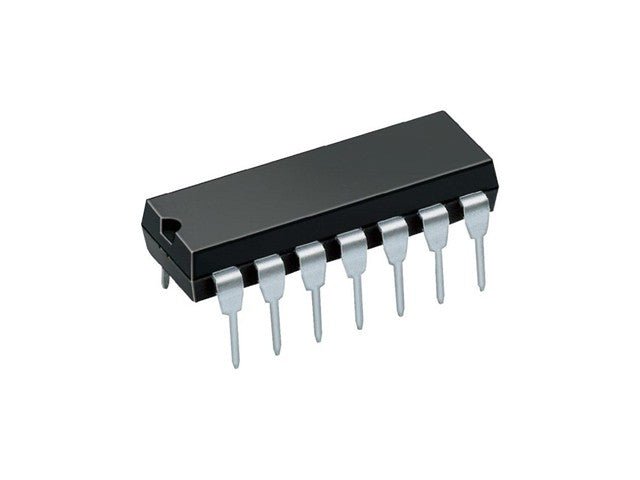

Dual Line Receiver 14PD
Specifications
|
Parameter |
Value |
|
Logic Family |
TTL |
|
Supply Voltage (Vcc) |
4.75 – 5.25 V |
|
Input Voltage (High) |
2.0 V minimum |
|
Input Voltage (Low) |
0.8 V maximum |
|
Output High Voltage (VOH) |
2.4 V minimum |
|
Output Low Voltage (VOL) |
0.4 V maximum |
|
Output Current (High, Low) |
±8 mA |
|
Power Dissipation |
~40 mW typical |
|
Propagation Delay |
~15 ns typical |
Feature
- Dual independent line receiver.
- Differential inputs for noise immunity.
- TTL-compatible outputs.
- Wide common-mode input range.
- 14-pin DIP package.
Applications
- Data communication lines
- RS-422 / RS-485 interface
- Digital signal isolation
- Noise-resistant bus receivers
Additional Information
| Device | Receiver |
