Product Details

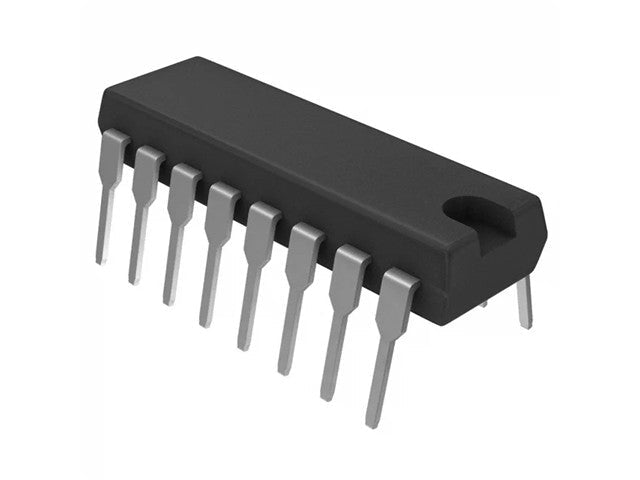

Flip Flop Dual J-K with Preset&Clear 16PD
Specifications
|
Function
|
Set(Preset) and Reset
|
|
Type
|
JK Type
|
|
Output Type
|
Complementary
|
|
Number of Elements
|
2
|
|
Number of Bits per Element
|
1
|
|
Clock Frequency
|
45 MHz
|
|
Max Propagation Delay @ V, Max CL
|
20ns @ 5V, 15pF
|
|
Trigger Type
|
Negative Edge
|
|
Current - Output High, Low
|
400µA, 8mA
|
|
Voltage - Supply
|
4.75V ~ 5.25V
|
|
Current - Quiescent (Iq)
|
4 mA
|
|
Operating Temperature
|
0°C ~ 70°C (TA)
|
|
Mounting Type
|
Through Hole
|
|
Supplier Device Package
|
16-PDIP
|
|
Package / Case
|
16-DIP (0.300", 7.62mm)
|
Additional Information
| Device | Flip Flop |
