Product Details

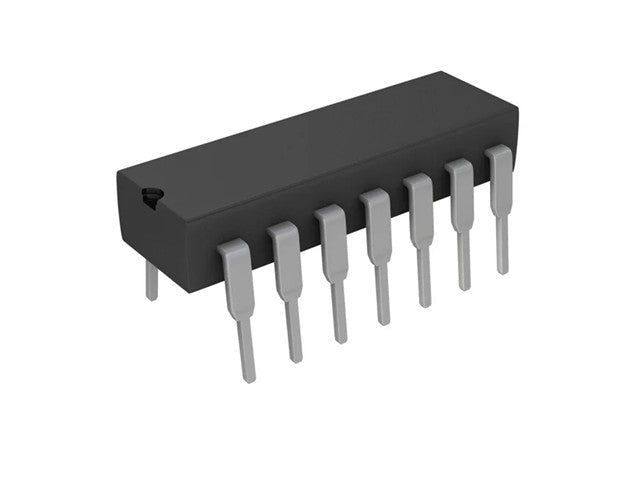

Gate NAND POS Quad 2-Input HV Interface 14PD
Specifications
|
Logic Type
|
NAND Gate |
|
Number of Circuits
|
4
|
|
Number of Inputs
|
2
|
|
Features
|
Open Collector
|
|
Voltage - Supply
|
4.75V ~ 5.25V
|
|
Current - Output High, Low
|
-, 8mA
|
|
Input Logic Level - Low
|
0.8V
|
|
Input Logic Level - High
|
2V
|
|
Max Propagation Delay @ V, Max CL
|
32ns @ 5V, 15pF
|
|
Operating Temperature
|
0°C ~ 70°C
|
|
Mounting Type
|
Through Hole
|
|
Supplier Device Package
|
14-PDIP
|
|
Package / Case
|
14-DIP (0.300", 7.62mm)
|
Additional Information
| Device | IC |
