Product Details

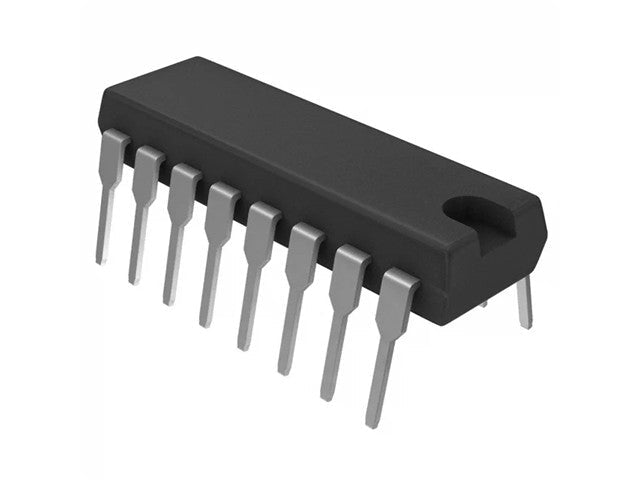

Flip Flop D-Type Hex Quad with CLear 16PD
Specifications
|
Function
|
Master Reset
|
|
Type
|
D-Type
|
|
Output Type
|
Complementary
|
|
Number of Elements
|
1
|
|
Number of Bits per Element
|
4
|
|
Clock Frequency
|
40 MHz
|
|
Max Propagation Delay @ V, Max CL
|
25ns @ 5V, 15pF
|
|
Trigger Type
|
Positive Edge
|
|
Current - Output High, Low
|
400µA, 8mA
|
|
Voltage - Supply
|
4.75V ~ 5.25V
|
|
Current - Quiescent (Iq)
|
18 mA
|
|
Operating Temperature
|
0°C ~ 70°C (TA)
|
|
Mounting Type
|
Through Hole
|
|
Supplier Device Package
|
16-PDIP
|
|
Package / Case
|
16-DIP (0.300", 7.62mm)
|
Additional Information
| Device | Flip Flop |
