Product Details

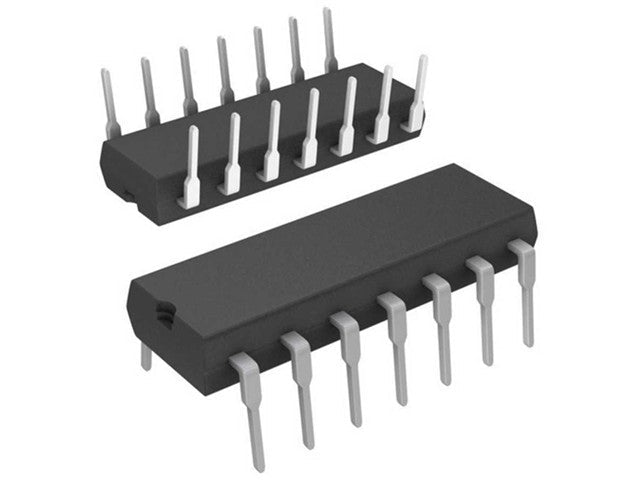

Hex Inverter with Schmitt Trigger Inputs
Specifications
Electrical Characteristics
- Supply Voltage (Vcc): 4.75V – 5.25V
- Nominal Voltage: 5V
- Input HIGH (VIH): ~1.6V (typical threshold upper)
- Input LOW (VIL): ~0.8V (typical threshold lower)
- Hysteresis Voltage: ~0.8V (typical)
- Output HIGH (VOH): ≥ 2.7V @ –0.4 mA
- Output LOW (VOL): ≤ 0.5V @ 8 mA
- Propagation Delay: ~15 ns (typical)
- Power Dissipation: Approx. 2 mW per gate
Absolute Maximum Ratings
- Vcc: 7V
- Input Voltage: –0.5V to 7V
- Operating Temperature: 0°C to +70°C
- Storage Temperature: –65°C to +150°C
Functional Characteristics
- Inputs per Gate: 1
- Outputs per Gate: 1
- Logic Function: Inverter (NOT) with Schmitt Trigger
- Output Type: Totem-pole TTL
Additional Information
| Device | IC |
