Product Details

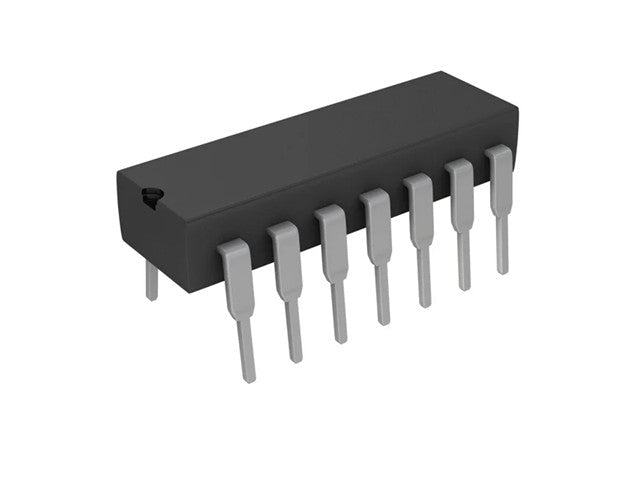

High-Speed CMOS Logic Quad Buffer, Three-State
Specifications
|
Logic Type
|
Buffer, Non-Inverting
|
|
Number of Elements
|
4
|
|
Number of Bits per Element
|
1
|
|
Output Type
|
3-State
|
|
Current - Output High, Low
|
6mA, 6mA
|
|
Voltage - Supply
|
4.5V ~ 5.5V
|
|
Operating Temperature
|
-55°C ~ 125°C (TA)
|
|
Mounting Type
|
Through Hole
|
|
Package / Case
|
14-DIP (0.300", 7.62mm)
|
|
Supplier Device Package
|
14-PDIP
|
Additional Information
| Device | Buffer |
