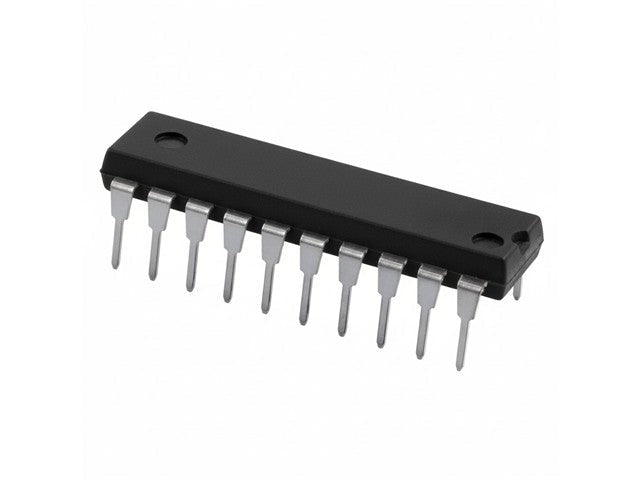

8-Bit Universal Shift/Storage Register DIP-20
Specifications
- Logic Type: Universal shift and storage register
- Number of Bits: 8-bit
- Register Type: Parallel load / serial shift register
- Shift Direction: Left or right shift capability
- Control Inputs: Mode control inputs for hold, shift left, shift right, and parallel load
- Clock Trigger: Positive-edge triggered clock input
- Output Type: 3-state (tri-state) outputs for bus interface
- Supply Voltage (VCC): 2 V – 6 V
- Typical Supply Voltage: 5 V
- Propagation Delay: ~15–25 ns (typical at 5 V)
- Output Current: ±5.2 mA (typical at 5 V)
- Input Type: CMOS high-impedance inputs
- Package Options: DIP-20, SOIC-20
- Operating Temperature Range: −40 °C to +85 °C
- Logic Family: HC (High-Speed CMOS)
Additional Information
| Device | Shift Register |
