Product Details

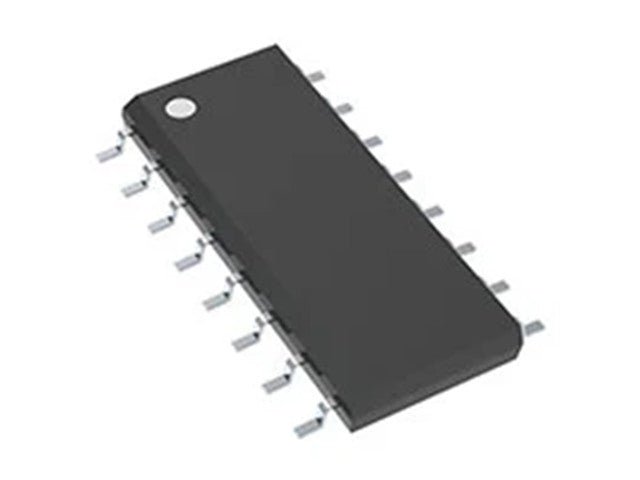

Register D-Type 4-BIT with 3 State Output 16P(25)
Specifications
|
Function
|
Master Reset
|
|
Type
|
D-Type
|
|
Output Type
|
Tri-State, Non-Inverted
|
|
Number of Elements
|
1
|
|
Number of Bits per Element
|
4
|
|
Clock Frequency
|
60 MHz
|
|
Max Propagation Delay @ V, Max CL
|
34ns @ 6V, 50pF
|
|
Trigger Type
|
Positive Edge
|
|
Current - Output High, Low
|
7.8mA, 7.8mA
|
|
Voltage - Supply
|
2V ~ 6V
|
|
Current - Quiescent (Iq)
|
8 µA
|
|
Input Capacitance
|
10 pF
|
|
Operating Temperature
|
-55°C ~ 125°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Supplier Device Package
|
16-SOIC
|
|
Package / Case
|
16-SOIC (0.154", 3.90mm Width)
|
Additional Information
| Device | Register |
