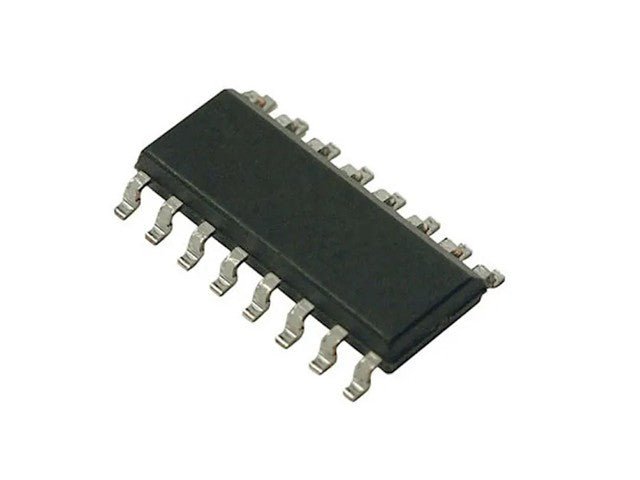

Quad 2-Input NAND Gate with Schmitt-Trigger Inputs SO14
Specifications
- High Speed : tPD = 16 ns (TYP.) AT VCC = 5 V
- Low Power Dissipation : ICC = 4 µA AT TA = 25 °C
- Output Drive Capability : 10 LSTTL LOADS
- Balanced Propagation Delays : tPLH = tPHL
- Symmetrical Output Impedance : |IOH| = IOL
- High Noise Immunity : VNIH = VNIL = 28 % VCC (MIN.)
- Wide Operating Voltage Range : VCC (OPR) = 2 V TO 6 V
- Pin And Function Compatible : WITH 54/74LS138
Additional Information
| Device | NAND Gate |
