Product Details

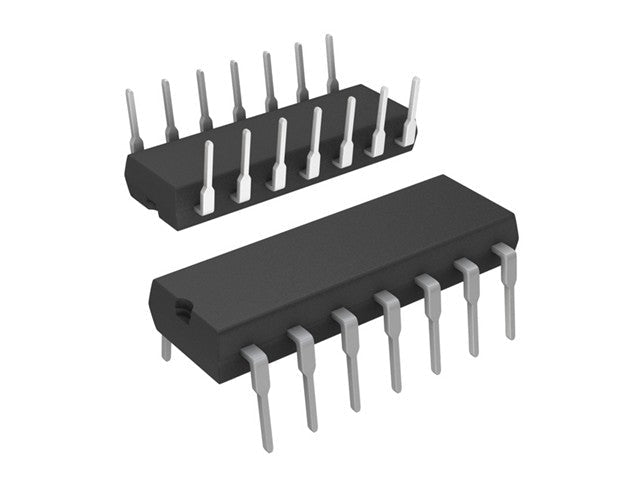

Triple 3-Input AND Gate 14PIN
Specifications
|
Number of Circuits
|
3
|
|
Number of Inputs
|
3
|
|
Voltage - Supply
|
2V ~ 6V
|
|
Current - Quiescent (Max)
|
2 µA
|
|
Current - Output High, Low
|
24mA, 24mA
|
|
Input Logic Level - Low
|
0.9V ~ 1.65V
|
|
Input Logic Level - High
|
2.1V ~ 3.85V
|
|
Max Propagation Delay @ V, Max CL
|
8ns @ 5V, 50pF
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Mounting Type
|
Through Hole
|
|
Supplier Device Package
|
14-MDIP
|
Additional Information
| Device | AND Gate |
