Product Details

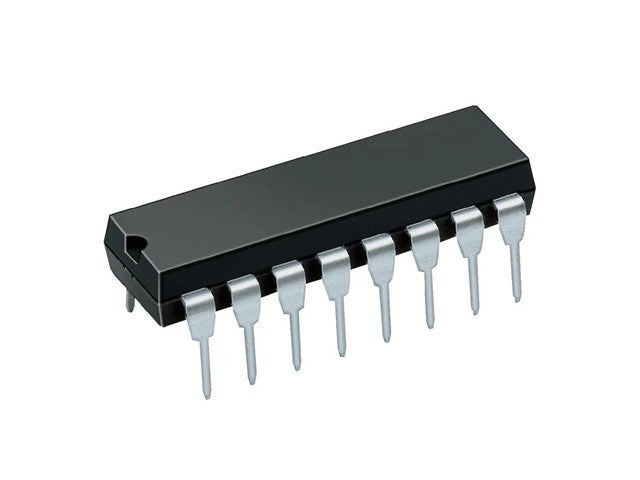

Dual JK Positive Edge-Triggered Flip-Flop 16PIN
Specifications
- Type: Dual JK flip-flop
- Trigger: Positive edge-triggered
- Number of Flip-Flops: 2
- Inputs: J, K, Clock (CLK), Preset (PR), Clear (CLR) for each flip-flop
- Outputs: Q and Q̅ for each flip-flop
- Logic Family: AC (Advanced CMOS TTL compatible)
- Package: 16‑pin DIP
- Supply Voltage (Vcc): 4.5 – 5.5 V
- Input Logic Levels: TTL compatible
- Propagation Delay: ~10 ns typical
- Operating Temperature: 0 °C to +70 °C (commercial)
- Function: Stores and toggles binary data; edge-triggered operation
- Applications:
- Counters
- Shift registers
- Control circuits
- Memory storage elements
Pin Summary (16‑Pin DIP)
- Pins 1, 2: J1, K1
- Pins 3, 4: Clock1, Clear1
- Pins 5, 6: Preset1, Q1
- Pins 7, 8: Q̅1, GND
- Pins 9–14: J2, K2, Clock2, Clear2, Preset2, Q2, Q̅2
- Pin 16: VCC
