Product Details

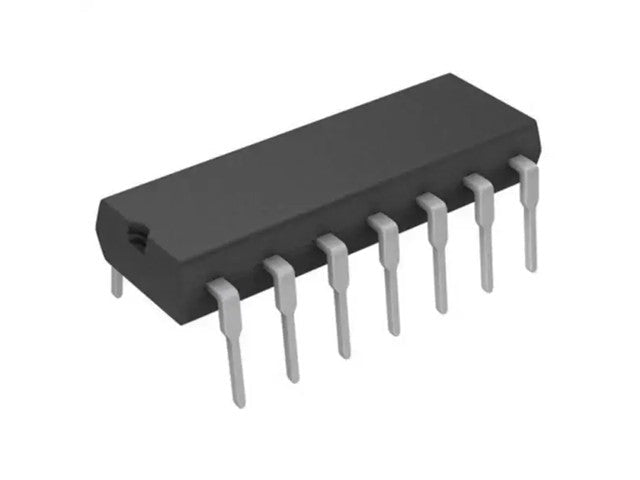

Dual 2-Wide 2-Input AND-OR-Invert Gate
Specifications
|
Number of Gates: |
2 Gate |
|
Number of Input Lines: |
2 Input |
|
Number of Output Lines: |
1 Output |
|
High Level Output Current: |
– 16 mA |
|
Low Level Output Current: |
0.4 mA |
|
Propagation Delay Time: |
20 ns |
|
Supply Voltage – Max: |
5.25 V |
|
Supply Voltage – Min: |
4.75 V |
|
Minimum Operating Temperature: |
0 C |
|
Maximum Operating Temperature: |
+ 70 C |
|
Mounting Style: |
Through Hole |
|
Package/Case: |
PDIP-14 |
|
Packaging: |
Tube |
|
Function: |
AND-OR-Invert |
|
Height: |
4.57 mm |
|
Input Type: |
TTL |
|
Length: |
19.3 mm |
|
Operating Temperature Range: |
0 C to + 70 C |
|
Output Type: |
TTL |
|
Series: |
SN74LS51 |
|
Width: |
6.35 mm |
|
Logic Type: |
2-Input AND-OR-INVERT |
|
Number of Bits: |
2 bit |
|
Operating Supply Current: |
14 uA |
|
Operating Supply Voltage: |
5 V |
Additional Information
| Keywords | AND-OR-Invert, AND, OR, NOT |
| Device | Logic Gate |
