Product Details

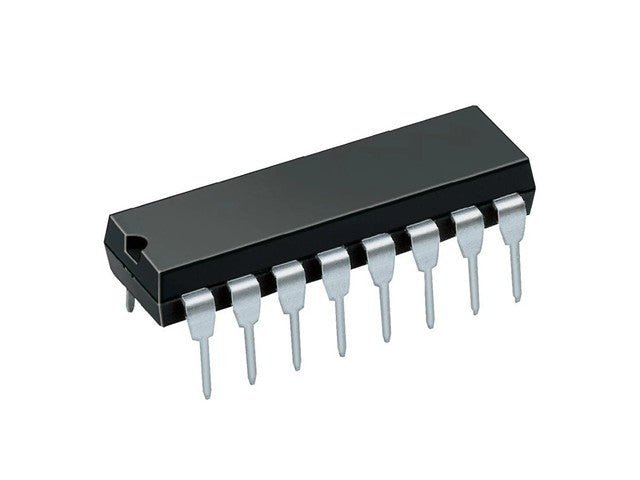

Dual 4-Bit Binary Counter Decade 16PD
Specifications
- Logic family: 74xx / 74LS
- Supply voltage (Vcc): 5 V nominal
- Operating range: 4.75 – 5.25 V
- Input HIGH: ≥ 2.0 V
- Input LOW: ≤ 0.8 V
- Output current:
- LOW: 8 mA
- HIGH: –0.4 mA
- Typical propagation delay: 20–35 ns
Feature
- Dual 4-bit binary counters in one IC
- Divide-by-2 and divide-by-8 sections
- Can operate as a divide-by-16 counter
- Asynchronous reset inputs
- TTL compatible inputs/outputs
- Cascade capability for multi-digit counting
- Useful for BCD (0–9) and binary (0–15) counting
Additional Information
| Keywords | Counter |
| Device | Counter |
